Lcd digital multimeter ac dc volt tester tool 830L ce
LCD Digital Multimeter AC DC Volt Tester Tool 830L CE
LCD Digital Multimeter AC DC Volt Tester Tool 830L CE

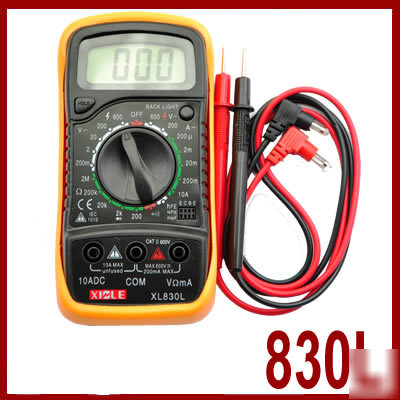

***LCD Digital Multimeter AC DC Volt Tester Tool 830L***
* The meter is handheld Digital Multimeter for measuring DC and AC Voltage, DC Current, Resistance, Diode and Transistor with battery operated.
* Display: Blue Backlight LCD, 1999 counts, updates 2-3/sec
* Measuring method: Dual-slope integration A/D Converter
* Operating Environment: 0 to 40 C
* Storage Temperature: -10 C to 50 C
* Power: 9V Battery, NEDA 1604 or 6F22 Type
* Fuse Protection: 200mA/250V
* Measurement Range 200VmV-600V
* Overload Protection: 250V rms
* Measurement Range 200V-600V
* Overload Protection: 600VDC or rms
* Measurement Range DC 2000-10A
* Overload Protection: F 200mA/250V fuse (10A range unfused)
* Measurement Range 200 Ohms - 2M Ohms
* Maximum Open Circuit Volatge: 3.2V
* Overload Protection: 250VDC or rms
* Show the approx. forward voltage drop of the Diode
* Measurement Range hFE TEST (0-1000)
