Motor controller w/ 3EA NEMA23 300 oz/in stepper motors
2. Install the Software and cables.

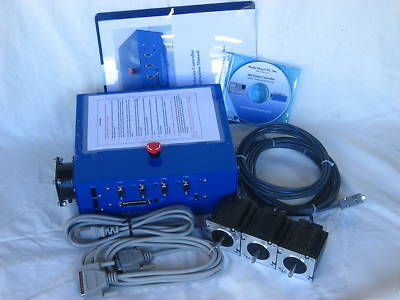

This system is ready to run. You provide the machine and the motor couplings and we provide the controller, motors, cables and software.

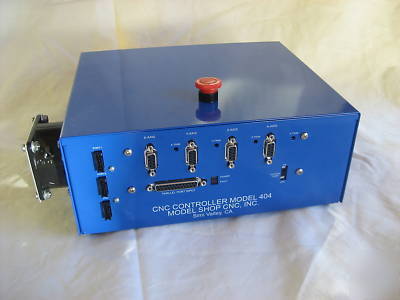

1. 404 Series 4 Channel Controller and power cord.
2. 3ea Pre-wired 300 oz/in Dual Shaft motors w/ 8' cables and home switches.

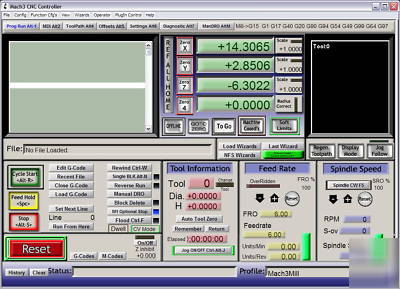

3. Mach3 Software and Manuals on CD.

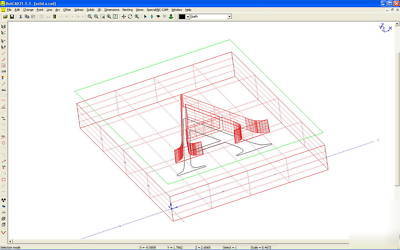

4. Bobcad V21 3D Programming Software
6. 404 Series Instruction Manual.
Motor Outputs 3.5A Maximum per port
Motor Current 3.5A Max Speed/Max Torque
Shaft Diameter .250" with flat
- (2) I/O Ports with 2 inputs and 1 output each and 5V Supply (1A Max all ports)
- (1) VFD Port with 10VDC Output.
- Mechanical Latching Emergency Stop Switch.
System can be used for precision inspection, automated sonic welding, custom XY positioning, milling, lathing, manual drilling and much more.
300 oz/in motor with a nema 23 mounting flange.
Extremely high power to weight ratio
Superior linearity (better microstep accuracy)
Less torque drop at upper speeds
Our step motors feature an improved stator design wherein geometries are altered for greater torque output than other 2-phase step motors of comparable length.
The exceptional static torque profile makes it possible to use shorter motors than before in a given application. Since shorter motors inherently produce better speed vs. torque
characteristics due to lower resistance and inductance, the net result is an ability to push same loads at higher speeds or higher loads at same speeds. This makes these
steppers good candidates for some applications currently beholden to servos.
The new stator design also features improved linearity, the characterisitic most influential on microstepping accuracy. The better the motor's linearity, the lesser tendency
there is for micorsteps to stretch and compress. The RS motors rightly deserve the classification, "Microstep Optimized". Additionally, the motors are surprisingly quiet in
comparison to other stepper motors.
The system includes our standard 1 year warranty.
