New 6" sloped ceiling can light fixture ic rated

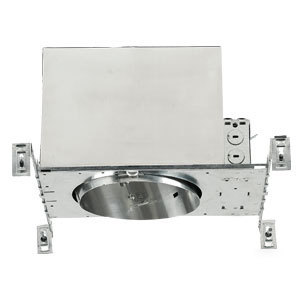

6-inch Sloped Ceiling Can Light Fixture
6-inch Sloped Ceiling Incandescent, Type IC, New Construction (Lamps not included)
Applications - For use in insulated ceilings and can be installed in direct contact with insulation
* Ceiling cut-out: 7-1/16 in. x 6-7/8 in. oval
* Plaster Frame: 7-5/8in.W x 12in.L
* UL, cUL listed for use in damp locations
* J-Box is listed for eight (4in - 4out) No. 12 AWG (90 degree C) through-branch conductors and has five 1/2in., one 3/4in. and four Romex knockouts with true pry out slots.
* Romex knockouts include built in strain relief - no additional clamps required.
* Pre-installed hanger bars allow housing to be positioned at any point within 24in. joist span. Score lines provided for easy field shortening to accommodate 12in. joist span.
* Hanger Bars are designed to fit on to T-Bar spine for quick alignment and can be permanently secured without the need of additional clips.
* Housing adjusts for ceilings up to 1-3/8in. thick
* 7-1/2in. height allows use in 2in. x 8in. joist construction.
* Designed for sloped ceiling form 2/12 to 6/12 pitch.
* The socket swivels to align lamp direction.
* Sealed and gasketed construction limits air exchange between the ceiling plenum and heated or air conditioned areas - performance
