STM3210B-eval evaluation board open box perfect cond.

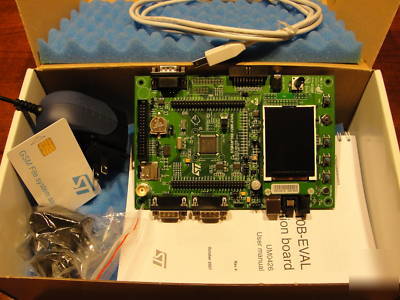

New Condition STM3210B Evaluation Board
This board was bought for my office and never used. This unit is tested and like new.
The STM3210B-EVAL is an evaluation board for STMicroelectronic s ARMTM Cortex-M3 core-based STM32F10x 128 K microcontrollers. It is designed as a complete development environment for the STM32F10x microcontrollers with full speed USB2.0, CAN2.0A/B
compliant interface, two I2C channels, two SPI channels, three USART channels with smartcard support, internal 20KB SRAM and 128KB Flash, JTAG and SWD debugging. With a complete range of hardware evaluations features, the STM3210B-EVAL board is
designed to help developers evaluate all device peripherals (such as USB, motor control, CAN, MicroSD Card , smartcard, USART) and develop their own applications. Extension connectors make it possible to easily connect a daughterboard or wrapping board for a
Three 5 V power supply options: power jack, USB connector or daughterboard
Boot from user Flash, test Flash or SRAM
Type A and Type B smartcard support
I2C/SMBus compatible serial interface temperature sensor
Two RS-232 communication channels with support for RTS/CTS handshake on one
USB 2.0 full speed connection
CAN 2.0A/B compliant connection
Induction motor control connector
JTAG, SWD and trace tool support
Joystick with 4-direction control and selector
Reset, wakeup, tamper and user push buttons
Extension connector for daughterboard or wrapping board
