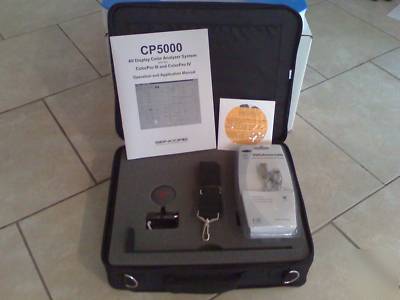

Sencore CP5000U-iii "color pro" color analyzer complete
We have a total of (10) of these in stock!!
Our company "Choice Electronics" has specialized in New and Refurbished Sencore testing equipment for the last 19 years. If you are in need of any other HD Video Calibration Equipment, please contact us. We have big discounts on the VP403C "Video Pro", and CP5000U-III "Color Pro" Color Analyzers.
www.choicegear.net Phone# (***)-609-0677 Direct Phone# (***)-361-6386
Sencore CP5000U-III (Specs and Features)
Align ALL LCD, CRT, DLP and Plasma Video Displays to Match Industry Specifications and to Deliver Peak Performance with the CP5000 All-Display ColorPro Color Analysis System Features:
* Align color tracking on any video display to give you the confidence that the display is aligned to perform its best and to industry specifications
* Continuously updated readings let you calibrate video displays with flexibility not found with the ?single-shot? reading capabilities of a spectroradiometer
* The easy-to-use graphical interface greatly decreases calibration time with easy to follow measurement screens
* The CIE and RGB screens make calibration simple by illustrating exactly which colors need adjusting
* Portable operation makes it easy to align displays wherever displays are found
* The measurement specifications are similar to those found on lab-grade instruments and are NIST traceable
* Patented light-pipe system provides a narrow light acceptance angle for accurate measurement of LCD displays
* Custom software lets you store calibration information and print it out in an easy to interpret report
* Software DLL package lets you integrate the CP5000 All-Display ColorPro into your specific color analyzer application

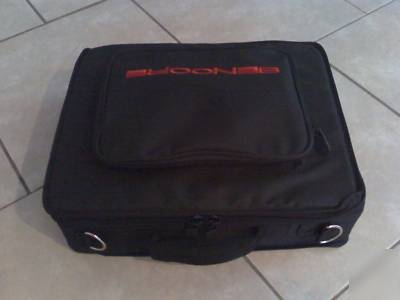

* Attractive, durable carrying case protects your CP5000 between calibration jobs
* The CP5000 is available in either USB or standard serial version
* Measurements : xyY, Luminance (Foot Lamberts or cd/m2), Delta RGB,Color Temperature, Delta Exy
* Measurement Update Rate : Averaging: Adjustable
* White References : D65, D50, E, D55, D75, C, 3000K to 12000K in 500 K steps,Custom, Custom Capture; an unlimited number of custom references can be stored to disk
* Host System : Pentium-class PC running Windows 95 or higher
* Operating Temperature : 10 to 25?C
* Operating Relative Humidity : 10 ? 80% (non-condensing)
* Operating Altitude : Sea level to 10,000 feet
* Accuracy Specifications : @ 20?C, D50, relative to NIST certified reference
* ColorPro III : Accuracy:xy: ? 0.004; (@ 65 cd/m2 minimum) Y: ? 2%; Repeatability: xy: ? 0.002; (same-sensor/no-dismount)Y: ? 1%; Luminance Range: 0.05 ? 150 cd/m2
