Sure light led light stix exit retrofit kit (rkri)

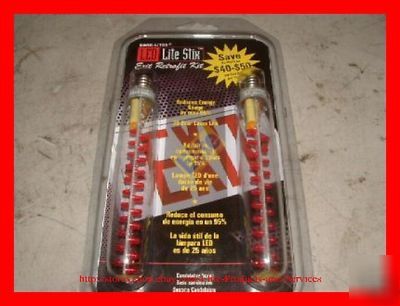

LED LITE STIX LED Retrofit Kit
Reduces energy usage by over 95%!
The Sure-Lites LED LITE STIX LED Retrofit Kit for Exits offers the latest technology in exit lighting available today. The Patent Pending design of the LED LITE STIX provides superior illumination of exit lettering at a fraction of the costs associated with typical incandescent lamps. Each kit is provided with two lamps which come in three different base styles to suit nearly every application. Installation is easy since the lamps simply screw into the existing incandescent lamp sockets. The long life characteristic of the LEDs is protected by an integral MOV (Metal Oxide Varistor) surge protection device which is designed to protect the lamp in the event of an electrical surge. Practically any stencil face incandescent exit fixture can be retrofitted with the Sure-Lites LED LITE STIX LED Retrofit Kit for Exits, yielding significant energy savings and eliminating the lamp maintenance associated with incandescent lamps. The kit is suitable for use with either single or double face exit fixtures. An Aesthetics Enhancing Diffuser Accessory is available as a replacement for existing faded or damaged diffusers; it is also suitable for converting green exits to red (where code allows). Note: the Aesthetics Enhancing Diffuser is not required to meet visibility requirements or for UL Listing.
* 120 VAC, 60 Hz input voltage
* Long life, high output LEDs
* Consumes less than 1 watt per lamp (2W per kit)
* MOV (Metal Oxide Varistor) surge protected
* LEDs (Light Emitting Diodes) are encapsulated in a standard T-6 1/2 glass lamp envelope
* Super-clear glass and super-bright LEDs combine for optimum light output
* Simple screw-in installation - no special adapters or messy rewiring
* Direct replacement for up to 20W incandescent lamps
* Two lamps provided per kit
* No special provisions required for installation:
1.Disconnect AC power and open exit fixture
2. Remove existing AC incandescent lamps
3. Screw-in LED LITE STIX
4. Close exit fixture and reconnect AC power
* UL 924 Listed, Life Safety NFPA 101, CSA Certified, NEC/OSHA, Most state and local codes
* Suitable for practically any stencil face exit up to 13" x 9" x 3" with 6" letters
* Suitable for use with single or double face exit fixtures
* Eliminates lamp replacement costs and maintenance labor
* Trilingual instructions included (English, Spanish, and French)
* Aesthetics Enhancing Diffuser Accessory can be used to replace existing diffuser if faded or damaged
* Aesthetics Enhancing Diffuser can also be used to convert green exits to red (where allowed by code)
* Aesthetics Enhancing Diffuser is not required to meet visibility requirements or for UL Listing
