Vpc ter cx ita 18GHZ sma(f)-osp(m) adapter 610102107
VPC TER CX ITA 18GHz SMA (f) - OSP (m) Adapter 610102107

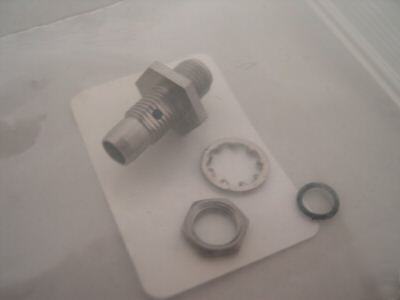

These units are in new in the packaging, they are SMA female to OSP male bulkhead adapters.
* Characteristic Impedence: 50 Ohms
* Frequency Range: DC to 18 GHz
* Maximum VSWR: 1.05 + .005f (GHz) up to 18 GHz
* Insertion Loss: .06 x (f) GHz dB
* Temperature Range: -65 C to 165 C
* Operating Voltage and Current: 6.7 Amps @ 335 V RMS Max
* Contact Resistance: 4 mOhms Max. center conductor 2 mOhms Max. outer shield
* Insertion Force: Insertion 3 lbs Max. Extraction 1.5 lbs Max.
* Dielectric Withstanding Voltage (DWV): 1000 V RMS min.
* Insulation Resistance: 5000 mOhms min.
* Contact Body: Housing stainless steel Center Contact BeCu
* Contact Plating: Au over Ni per Mil-G-45204
For more info, visit the Virginia Panel Connector website where the datasheet can be found: click here
