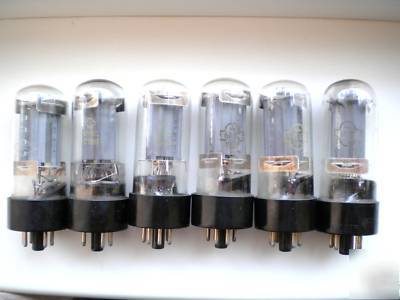

6P3S = 6L6GT = 6L6GC = 5881 tetrode tudes lot of 6
6P3S = 6L6GT = 6L6GC = 5881 Target beam tetrode.
Appointment: strengthening of fluctuations of low frequency.
Factory of radio tubes the Reflector. Saratov.
Pressure of the anode nominal (constant) 250 V.
Pressure of the anode limiting (constant) 400 V.
Current of the anode 72 14 .
Pressure of a grid -14 V first (constant).
Return current of a grid of the first 3,0 .
Pressure of a grid of the second nominal (constant) 250 V.
Pressure of a grid of the second limiting (constant) 300 V.
Current of a grid of the second 8 .
The capacity disseminated by the anode, limiting 20,5 Wt.
The capacity disseminated by a grid second, of limiting 2,75 Wt.
Pressure between the cathode and a heater the limiting.
Steepness of the characteristic 6 0,8 ma/V.
Target capacity (tonics 1) 5,4 Wt.
Resistance in a chain of a grid of the first limiting 0,5 Mom.
