Alcoa fujikura fsm-30R ribbon fiber arc fusion splicer

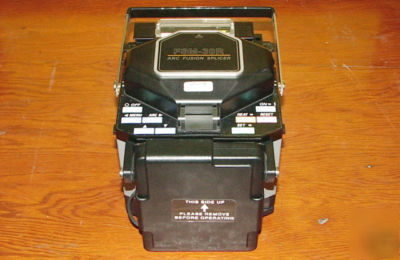

Alcoa Fujikura FSM-30R Ribbon Fiber Arc Fusion Splicer
* Best mass fusion splice loss performance in the industry, including splicing non-zero dispersion-shifted (NZ-DS) fibers
* Maximum productivity with much faster splicing than previous mass fusion splicer: 30 second splicing time
* New wind protector design withstands 30mph cross wind
* Unprecedented utility in exposed conditions
* Splices up to 12 fibers simultaneously
* Ultra small and lightweight design; ideal for remote/outdoor splicing scenarios
* Built-in programmable tube heater
* Slide in power modules include AC adapter, battery, or camcorder battery adapter
* Automatically adjusts fusion arc to compensate for cold temperatures, as well as differences in atmospheric pressure
* Simultaneous focus on all 12 fibers and large image magnification on low glare 5 color LCD monitor provides great fiber visibility
* Great mass fusion splicer capacity under battery power
* Applicable fibers SM (Single-mode), MM (Multi-mode), DS (Dispersion shifted) and NZ-DS (Non-Zero Dispersion shifted) fibers
* No. of fibers to be spliced: Single, 2, 4, 5, 6, 8, 10 and 12 fibers,irrespective of ribbon or bundle configurations.
* Actual average splice loss: Typical 0.05dB with SM fiber, Typical 0.03dB with MM fiber, and Typical 0.08dB with DS fiber
* Splicing time: Typical 35 seconds
* Fiber cleave length: 10 mm each
* Fiber observing direction: X and Y (2 axes)
* Fiber viewing method: 5" TFT color LCD monitor with anti-reflection coating
* Splice loss estimating function: SM, MM and DS fibers
* Number of splice modes: 30 programs
* Storage of splice results: The last 150 splices including estimated loss, selected splice mode, arc condition and comment
* Mechanical proof test: Approx. 2N
* Applicable protection sleeve length: 40 mm and 60 mm
* Number of splicing and heating cycles with BTR-05: Approx. 30 cycles with using power saving function of FSM-30R and HJS-02
It also includes one set of either FH-8 or FH-12 fiber holders, additional sets may be purchased for additional cost.
