B&k precision sp-1 signature probe

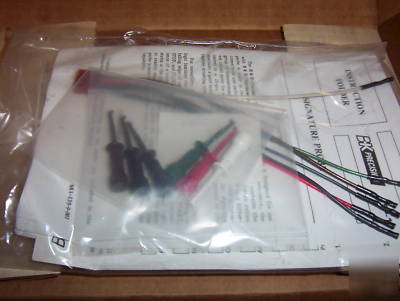

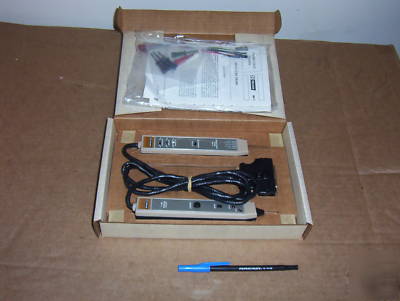

THIS IS A SET OF B&K PRECISION SP-1 SIGNATURE PROBES. THIS SET HAS NEVER BEEN USED HOWEVER IT WAS IN STORAGE FOR SOME TIME. USER MANUAL AND ACCESSORIES ARE INCLUDED AS SHOWN IN PICTURE.

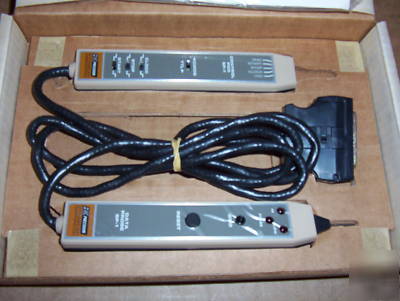

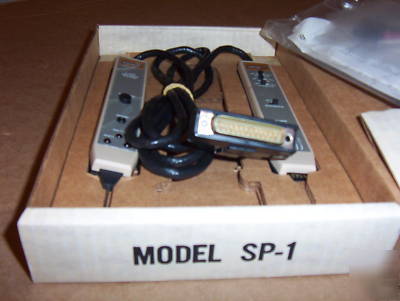

THE B&K PRECISION MODEL SP-1 SIGNATURE PROBE IS DESIGN FOR USE WITH SIGNATURE ANALYZERS. FOR CONVENIENCE, THE PROBE IS MADE IN TWO ASSEMBLIES. THE CONTROL POD CONTAINS THE CONNECTIONS AND SWITCHES WHICH USUALLY REMAIN UNCHANGED FOR AN ENTIRE GROUP OF MEASUREMENTS, WHILE THE DATA PROBE IS TOUCHED TO A DIFFERENT CIRCUIT POINT FOR EACH SIGNATURE MEASURED. THE PROBE CABLE IS TERMINATED IN 25-PIN "D" CONNECTOR WHICH CONNECTS TO THE SIGNATURE ANALYZER. FOR VERSATILITY, THE PROBE IS COMPATIBLE WITH EITHER TTL OR CMOS LOGIC FAMILIES. THE RISING OR FALLING EDGE OF INPUT SIGNALS ARE INDIVIDUALLY SELECTABLE FOR THE START, STOP, AND CLOCK INPUTS. THE DATA PROBE ALSO PROVIDES THE CONVENIENCE OF A CONVENTIONAL LOGIC PROBE, SHOWING HI , LOW, OR PULSE LOGIC STATES AT THE POINT OF MEASUREMENT. THE RESET BUTTON PERMITS THE USER TO READILY RESET THE SHIFT REGISTER FOR SINGLE- SIGNATURE CAPTURE IF THE PROBE IS USED WITH A SIGNATURE ANALYZER WITH A STEP-THRU OR SIGNATURE HOLD CAPABILITY.
