Craftsman 20/40 pressure switch 2764

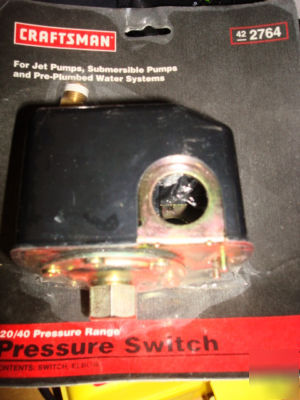

Thank You for viewing at NEW Craftsman 20/40 Pressure Range, Pressure Switch 2764.
For jet pumps, submersible Pumps and pre-plumbed water systems
-Drain water from pump and tank to relieve pressure in water system
-Remove switch cover and disconnct wiring. Remove lock washer and pressure switchy tube.
-Install new switch using lock washer
-Connect wiring as illustrated below
-Connect pressure switch tube and install switch cover.
