Fluke PM3394A oscilloscope pm 3394 a calibrated scope

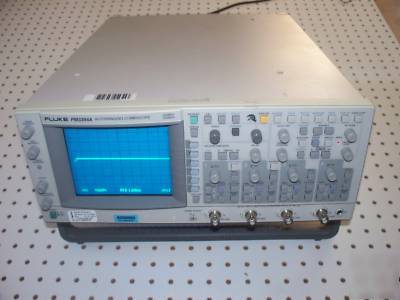

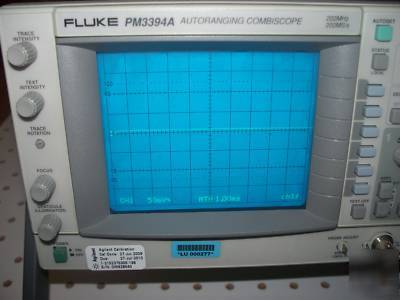

Fluke PM3394A.200MHz, 200MS/s, 4-Channel Combiscope Fluke/Philips PM3394A
CALIBRATION VALID UNTIL 07/27/2010!
POWER CORD INCLUDED , SORRY NO PROBES!
The Fluke PM3394A oscilloscope is a graph-displaying device it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
The Fluke PM3394A oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the moving parts of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
