Kine roller, mdl MC5-f, s/n t/ia-441, 5/16" & 3/8" stud

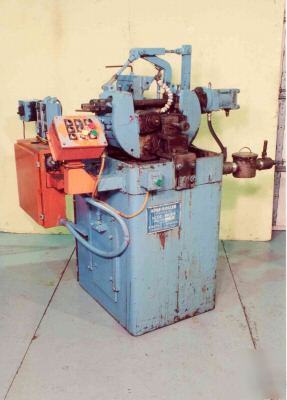

KINE MODEL MC5-F THREAD ROLLER: STOCK #16765
SERIAL .................................... T/IA-441
MODEL ..................................... MC5-F
MAXIMUM THROUGH FEED DIAMETER ............. 1-1/2"
MAXIMUM IN-FEED DIAMETER .................. 2"
MAXIMUM INFEED LENGTH ..................... 2-1/2"
MINIMUM PART DIAMETER ..................... .020"
MAXIMUM DIE WIDTH ......................... 2-1/2"
SPINDLE DIAMETER .......................... 1-1/2"
ADJUSTABLE SKEW ........................... 0 TO 5 DEGREE
MAXIMUM DIE LOAD .......................... 12,900#
THROUGH FEED OR INFEED .................... YES
SPINDLE MOTOR, HORSEPOWER ................. 10
HYDRAULIC UNIT & MOTOR INCLUDED TO CLOSE DIES
