Mastech linear dc power supply dual var 0-50 v @ 0-5 a

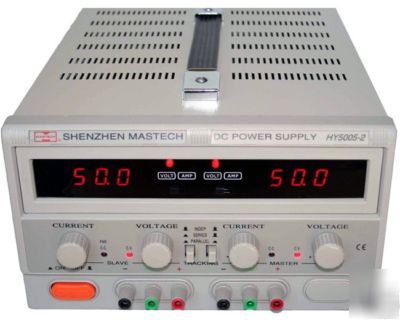

MASTECH HY5005-2 LINEAR DUAL DC POWER SUPPLY
BRIGHT DUAL LED DISPLAY METERS
DUAL VARIABLE VOLTAGE: 0 TO 50 Volts + CURRENT: 0 TO 5 Amps
This Linear Design dual output grounded DC power supply is of very high quality construction by MASTECH. Excellent for lab use with the two variable 0-50 volt 0-5 amp output. Other uses include science projects or any other use where stable voltage up to 30 volts is required. For the two variable outputs the voltage is variable from 0 to 50 volts and the current is also variable from 0 to 5 amps. The unit also has a switch to choose among INDEPENDENT, SERIES or PARALLEL operation which allows the choice of two independent 0-50V @ 0-5A outputs OR one 0-100V @ 0-5A output OR one 0-50V @ 0-10A output. The 2 digital LED meters display the actual voltage and current within 2 percent.
Both the voltage and the amperage are adjustable for absolute BEST precision.

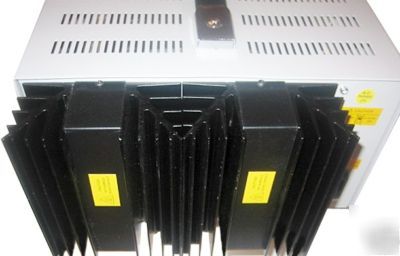

Heavy duty, stable output, switching type with low noise, output polarity: positive and negative, low ripple voltage less than 0.5 mVp-p, overload protection circuit, state of art design and cooling heat sinks.
SPECIFICATIONS FOR THE MASTECH HY5005D-2:
Two Power Outputs:2 Variable: 0 - 50 Volts @ 0 - 5 Amps
Constant voltage/ Constant Current
Voltage and Current adjustment
Power effect: CV<0.01%+2mV, CC<0.2% + 2mA
Overload effect: CV<0.01% +3mV, CC<0.2% +3mA
Waves and noises: CV<0.5mV r.m.s, CC 3mA, r.m.s
Protection: Current limited & Short circuit protection
Operating Temperature : 0 - 102 F ( 0 -40 C), Relative Humidity: <90%
LCD Accuracy is within + or - 2%
