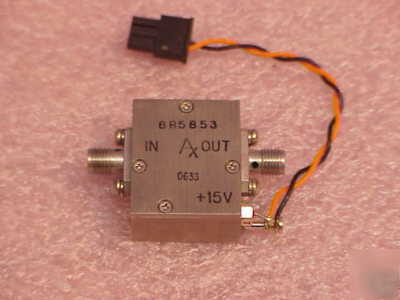

Sma rf microwave amplifier 100-300 mhz +33DB tested
Working range is 100 to 300 MHz. Gain @ +33dB.
This item has been TESTED by our Lab Technician and it works well.
Please view the lab photos below for additional information.
The pictures are shown with an Input Power of 0dB and 40dB of Attenuation.
Frequency: 100.0 - 300.0 MHz
Noise Figure: 1.8 dB Typical
P1dB Compression Point: 22.5 dBm Typical
3rd Order Intercept: 36.0 dBm Typical
2nd Order Intercept: 45.0 dBm Typical
Reverse Isolation: -37.0 dB Typical
Operating Temperature: -55.0 - 85.0 C
CLICK HERE for additional information and specifications.
SOLD A WITH A 7 DAY RIGHT OF INSPECTION!
