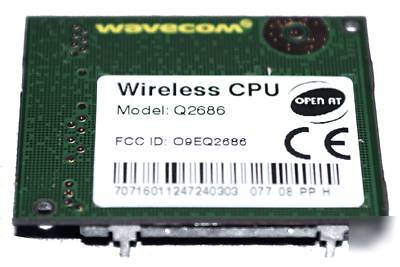

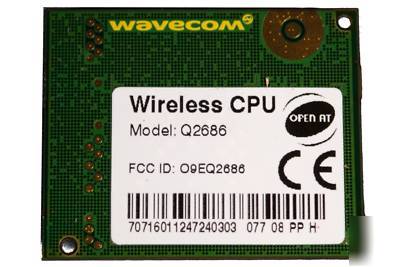

Wavecom Q2686 gsm/gprs quad-band module;Q2686H wireless
Wavecom Q2686 GSM/GPRS Quad-Band Module;Q2686H Wireless
Other Downloads (requires registration)
A brilliant quad-band GSM/GPRS module perfectly suited for true wireless integration into nearly any project or application...at about 5g and less than 2 square inches the possibilities are endless!
Available interfaces through the GPC include USB, SPIx2, I2C, ADC, DAC, RTC, Audio, Keypad, SIM, PCM...and another 44 GPIO thrown in for good measure! There is even an integrated NiCd/NiMh/LiIon charger and backup battery system.
The connectivity options are bewildering, yet the simple AT command set makes using the module a breeze with Arduino, ATMega, PICs-pretty much any MCU. Control via USB is also possible. All software and instructions are available in the links above. The documentation available for this module is extensive and detailed.

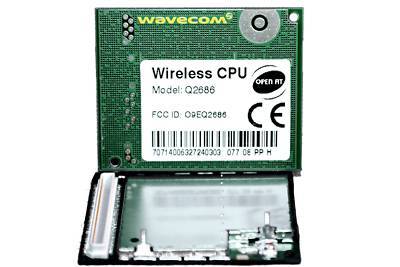

The GPC mates to AXK500147BN1 or AXK500147YG (100 pin, 0.5mm board to board socket). We will be carrying this item very shortly!
The Sierra Wireless AirPrime Q2686 intelligent embedded module is a feature-rich quad-band GSM/GPRS programmable wireless device. Thanks to footprint compatibility with the rest of the Q Series, it can easily be evolved to EDGE, 3G and 3.5G when required. Equipped with on-board audio recording facilities and up to 44 GPIOs, the Q2686 is well suited to alarm and voice-response systems or to applications requiring a high number of connections.
* Quad-band GSM/GPRS communications on the 800, 900, 1800 and 1900MHz bands
* Programmable ARM9 32-bit processor at 104MHz
* Compact size, just 40 x 32.2 x 4mm
* Footprint compatibility with entire Q Series of intelligent embedded modules
