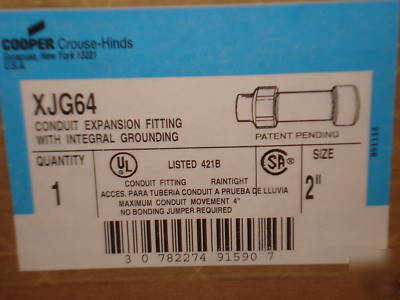

XJG64 crouse-hinds conduit expansion coupling
Manufacturer Part Number: XJG64
Material: ELECTROGALVANIZED ALUMINUM PAINTED FERALOY[R] IRON ALLOY GLAND NUT, REDUCER, BUSHING
Ground Type: INTERNALLY GROUNDED TINNED COPPER BRAID
Additional Information: STRAP LENGTH 24 INCH
Used On: RIGID METAL CONDUIT, IMC
Manufacturer Short Name: CRS-H
Classification: Rigid/EMT Conduit Expansion/Deflection Joint
ELECTROGALVANIZED ALUMINUM PAINTED FERALOY[R] IRON ALLOY GLAND NUT, REDUCER, BUSHING; ELECTROGALVANIZED STEEL BODY, ELECTROGALVANIZED PHOSPHOR BRONZE GROUND SPRING, ELECTROGALVANIZED STEEL WASHER, ELECTROGALVANIZED MALLEABLE IRON U BOLT, TEFLON[R] PACKING, VELLUM GASKET; TRADE SIZE 2 INCH; INTERNALLY GROUNDED TINNED COPPER BRAID; DIAMETER 4.75 INCH; LENGTH 8.25 INCH; 4 INCH MAXIMUM MOVEMENT; APPROVAL UL 514B, CSA C22.2; USED ON RIGID METAL CONDUIT, IMC; CROUSE-HINDS[R] BRAND; XJG MODEL; STRAP LENGTH 24 INCH
