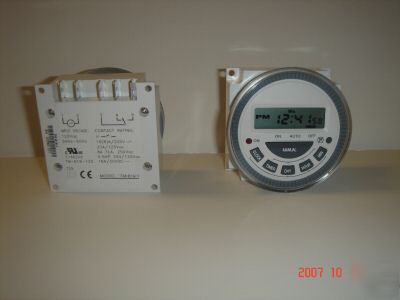

Frontier tm-619 electronic programmable 7 daytimer
Same size as Grasslin Digi-20, except Frontier TM-619 has lithium battery backup good for 2 years, whereas the Grasslin has a capacitor good for 3 days. Frontier also has LED for on/off status of switch. Timer Module base Size is 2.36" x 2.36" x 1.28" thick. Detailed dimensions are available on request.
These timers are used by OEMs(Original Equipment Manufacturers) in gate operators, generator exercisers, dosing operations, preheater timers for idustrial tanks of liquids, marine and automotive accessories that need to be switched on and off with "real time", irrigation clocks, timed ventilation systems, parking lot lights, etc. The list is almost endless. Anywhere where a system needs to be turned on and off with real time (clock time). These timers are available in various voltages... 12vdc, 120 vac, 220 vac. Other voltages available on special order of large quantities.
PLEASE SPECIFY WHICH VOLTAGE YOU NEED FOR YOUR APPLICATION.?!?!?! PLEASE SPECIFY WHICH VOLTAGE YOU NEED FOR YOUR APPLICATION?!?!?? 12 VDC, 24 VDC/AC, 120 VAC, 230 VAC
Below are the timer specifications:
* Lithium-ion battery , 2 years reserve
* Supply Voltage: 120VAC, 220VAC, 12VDC
* Frequency: 45-60Hz for VAC models
* Own Consumption: Approx. 7VA
* Switching Command: 1 minute
* Admissible ambient temperature: -10 C to 55 C
* Square housing & slide bracket available as option
* Form C output, NO, NC, Common, Quick Connect
* Contact rating for TM-619 & TM-619L:
*16A/250V Resistive, 8A/250V Inductive
* Contact rating for TM-619H:
PLEASE SPECIFY DESIRED VOLTAGE YOU NEED FOR YOUR APPLICATION.... 12VDC, 24 VDC/AC, 120VAC, 240 VAC
