Hoffman 401245 series 21 1-1/4" temperiing valve

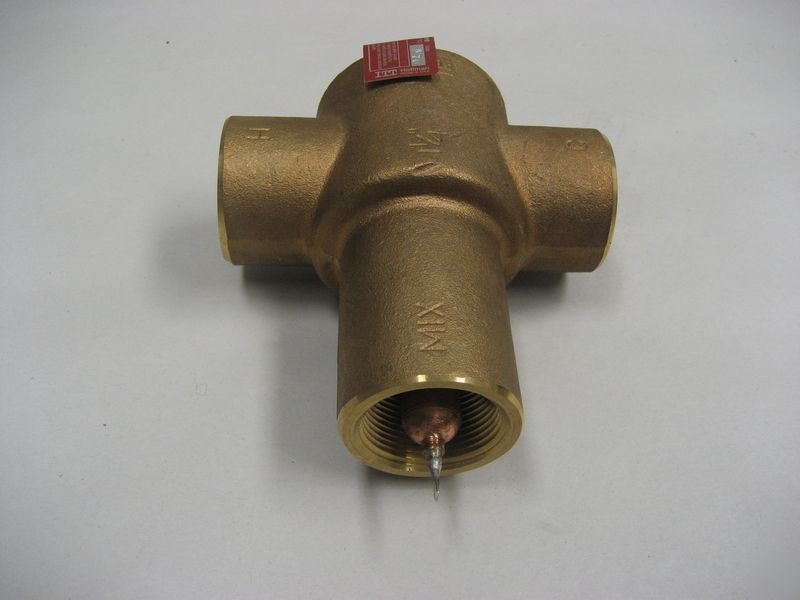

HOFFMAN 401425 SERIES 21 1-1/4" TEMPERING VALVE
control temperature in water mixing applications
such as radiant floor heating, domestic hot water
and industrial processing. They can also be used to divert
flow in cooling systems. Series 21 Valves can be used for
residential, industrial, commercial or institutional
applications. (THIS VALVE IS NOT TO BE USED FOR DOMESTIC SYSTEMS)
HOFFMAN TEMPERING 1-1/4" VALVE. SERIES 21 Fast acting, corrosion resistant actuator Solid filled thermostatic actuator exerts high operating
force and provides reliable service Easy temperature adjustment No special tools required Cast brass body
Adjustable temperature ranges
Model 21 140 200 F (60 93 C) Maximum pressure 125 psig (8.6 bar)
Maximum hot water supply temperature 235 F (113 C)
Model 21 provides wide temperature adjustment range for
hot and cold water mixing in applications other than
