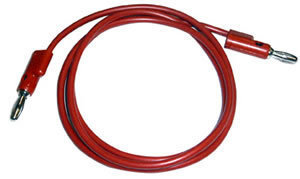

Banana plug patch cord-pomona stacking cords
There is (1) 72" Purple=Vertical
* Mates to Model #1581, 2854 or standard Banana Jack.
* Cross and vertical stacking banana plug.
* Ideal for providing jumpers or chassis boxes.
* Conn: Extension Stacking Banana Plug
Spring, Beryllium Copper per QQ-C-533, Allow 172, Cond. HT.
Plug Body: Brass, per QQ-B-626, Alloy 360, 1/2 hard.
Finish: Nickel plate per QQ-N-290 class 2, 200/300 microinches.
Insulation: Polypropylene molded to plug body and wire
Color: Purple(1), Orange(1)
* Operating Temperature.: +55 C. (+131 F.) Max.
* Operating Voltage: Hand-held Testing: 30VAC/60 VDC Max. Hands free testing in Controlled Voltage Environment: 5000 WVDC
