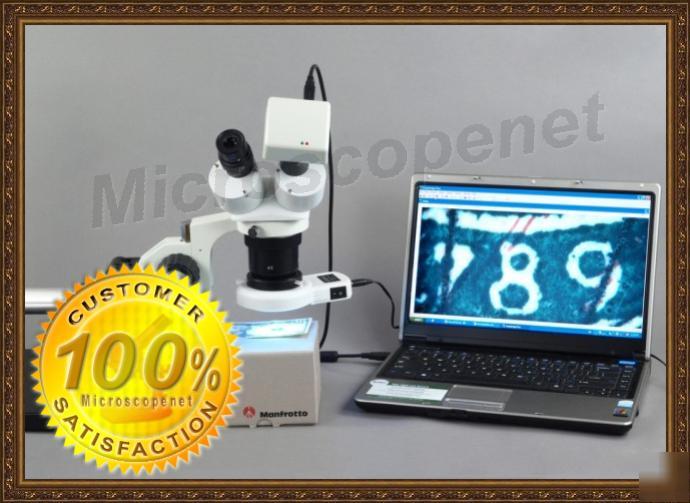

Boom stereo microscope 10X-80X with 1.3MCAMERA led lite
Boom Stand Binocular 10x~20x~40x~80x Stereo Microscope
* Four magnification levels: 10x, 20x, 40x & 80x
* 0.5X auxiliary objective lens for increasing working distance and field of view
* Long working distance: 120mm (4-3/4")
* Heavy and sturdy boom stand: 3-way movement; with longer arm allows large working area and secure microscope body
* 1280x1024 (1.3MP) high resolution digital camera with built-in 0.5x reduction lens to get larger field of view
* High speed USB 2.0 connection with computers. Compatible with Windows 2000/XP/Vista32 (64bit Vista not supported). Advanced software applications included
* Long lifetime bright cold 54 LED illuminator with power adapter
* Extra metal ring light adapter
* Eyepieces: super wide field WF10X/20 and WF20X/10
* Total magnifications: 10x, 20x, 40x,80x
* Left ocular-tube diopter adjustment 5dp
* Working distance: 4-3/4" (120mm)
* Field of view: Maximum 3/4"(19mm)
* High resolution digital camera: color 1280x1024 pixels. Built-in 0.5x reduction lens
* Plastic shell 54 white bright shadowless LED with 100v-240v wide voltage range power adapter
* 48mm metal thread ring light adapter
* Base Dimension: 10"x10" (25cmx25cm)
* Boom stand: Length: 19-1/4" (49cm); Height: 15-3/8" (39cm)
Main Functions: video viewing; image capturing, processing and measuring
Processing: video, capture, mode, adjust, rotate, crop, image scale, histogram, resolution, filter, range, segmentation, binary, emboss, pseudocolor, surface plot, line profile, diffuse, granulate, image mosaic, layer manager, property page, contrast enhancement, shade correction, color adjustment, edge detection, gray image morphological filters, digital image warping, image arithmetic operation...
Measurement: zoom, angle, point, single line, parallel lines, perpendicular lines, rectangle, ellipse, circle (center+radius, two points, three points), concentric circles, arc, text, polygon...
Sign marking tools: adding text, arrow, scale ruler. The color and size of the signs are adjustable
ROI (Region of Interest): rectangle, ellipse and arbitrary shaped region
Calibration tool: calibrates the system unit to get the actual read of the measurement
* USB 2.0 digital camera 1280x1024 with 0.5x built-in reduction lens
* Software and driver disc for Windows 2000/XP/ Vista 32-bit
* 54 LED ring light with power adapter
* Metal 48mm thread ring light adapter
Click the button above to see compatible part list for this product XG324HLC10
