Hanyoung temperature controller NX3-00 100-240V
Internal Inventory Number: 2643

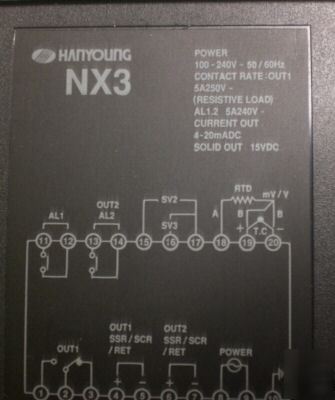

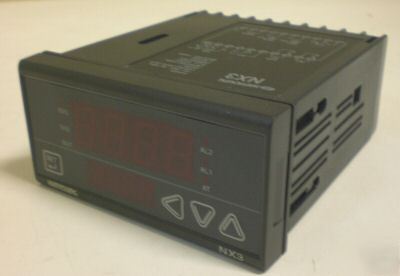

HANYOUNG TEMPERATURE CONTROLLER NX3-00 100-240 VAC.
MANUFACTURER: HANYOUNG ELECTRONIC CO. LTD.
DESCRIPTION: TEMPERATURE CONTROLLER.
CHARACTERISTICS: MODEL NX3-00,96W X48H X100D mm,PROTECTION IP 65 FRONT FACE, WEIGHT 340g, MATERIAL PLASTIC CASE (ABS).
1. POWER 100-240 VAC~ 50/60 Hz.
2. POWER CONSUMPTION 6.0W MAX 10 VA MAX.
3. STORAGE TEMPERATURE -25~70 C,STORAGE HUMIDITY 5~95% RH.
4. CONTACT RATE: OUT1 5A 250V~(RESISTIVE LOAD) AL 1.2 5A 240V.
5. CURRENT OUT 4-20 mADC, SOLID OUT 15 VDC.
FOR MORE INFORMATION ABOUT: http:// /Han/nx_series.html
