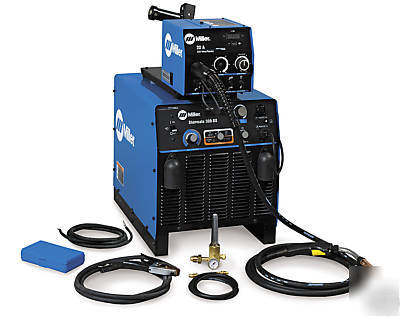

Miller shopmate 300 dx multipurpose welder # 951076
Part # 951076 200(208) 230 Volts
Part # 951077 230/460/575 Volts
(Specify which model you want when ordering)
Shopmate 300 DX Single-phase MIG or DC multi process capability for versatility with outstanding arc performance in CV
mode (MIG) and CC mode (Stick and TIG).
Large, dual digital meters
enable the operator to preset weld voltage in CV mode and amperage in the CC mode (DX
model only) before striking an arc.
adjusts inductance to optimize MIG arc performance.
keeps output power constant even if input power varies 10%.
provides quick, direct connection for 14-pin 24 VAC Miller wire feeders and accessories.
operates only when needed reducing noise, power consumption, and the amount of airborne
contaminants pulled through the machine.
Built-in 10-pin connector for direct hookup of Spoolmatic 15A or 30A spool guns.
Shopmate 300 DX includes: Process Selector Switch
operator-friendly single process switch eliminates confusion
caused by several switch combinations.
allows DC/TIG starting without the use of high-frequency. Starts the arc without
contaminating the weld with tungsten
___________________________________________________________________________________________________________
Single Process Selector Switch is "operator-friendly". Eliminates confusion caused by several switch combinations; making setup and operation easy.
Lift-Arc TIG allows DC/TIG starting without the use of high-frequency. Starts the arc without contaminating the weld with tungsten.
Large, dual digital meters enable the operator to preset weld voltage in CV mode and amperage in CC mode before striking an arc.
Arc control adjusts inductance to optimize MIG arc performance, or Dig control for Stick.
Stackable design can save valuable classroom or workshop space.
Line voltage compensation keeps output power constant even if input power varies plus or minus 10%.
Built-in 14-pin connector provides quick, direct connection for 14-pin 24 VAC Miller wire feeders and accessories.
Fan-On-Demand operates only when needed reducing noise, power consumption, and the amount of airborne contaminants pulled through the machine.
Shopmate 300 DX Specifications
Requires 1- phase power (primary power cord not included)
250 Amps at 30 VDC, 60% duty cycle
300 Amps at 32 VDC, 40% duty cycle
_________________________________________________________________________________
22A wire feeder with Bernard Q300 15 ft (4.6 m) gun
15 ft (4.6 m) 1/0 work cable with clamp
10 ft (3 m) 1/0 interconnecting cable
* MRO - Maintenance/Repair
