Square d pull-out ac unfused disconnect switch 60A

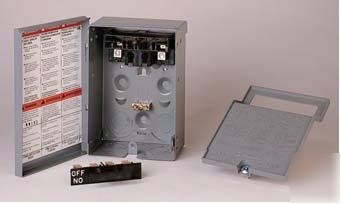

Square D Pull-out AC Unfused Disconnect Switch 60A
AC DISCONNECT UNFUSED 60 AMP SWITCH
Ampere Rating: 60AApplication: Residential and light commercial applicationsEnclosure Rating: NEMA 3RFor Use With: Air ConditionerReceptacles: NoneMounting Type: Panel/SurfaceNumber of Poles: 2-PoleDisconnect Type: Non Fusible - PulloutApprovals: UL ListedEnclosure Type: Metallic - Rain proof and Ice proof (Indoor/Outdoor)Voltage Rating: 240VACTerminal Type: ScrewDepth: 3.25 InchesHeight: 7.50 InchesWidth: 5.25 InchesWiring Configuration: 2-Wire
SIDE HINGED COVER FOR EASY ACCESS
PULL OUT HEAD CAN BE STORED IN OFF POSITION
REQUIRES TWO CARTRIDGE FUSES, NOT INCLUDED
