Telesis technologies tmc-420 controller panel mount

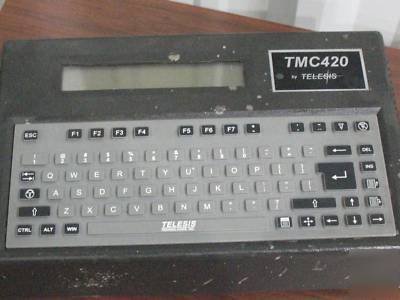

TELESIS TECHNOLOGIES CONTROLLER - TMC420
Size (L x W x H) 317 x 203 x 71mm (12.5 x 8 x 2.8")
Memory Store up to 75 pattern files
Keyboard Sealed and integrated
Enclosure Rating IP30 (NEMA 1) TMC420, IP65 (NEMA 12) TMC420N or TMC420P appropriately installed
Operating Temperature 0 50 C (32 122 F) (head and controller)
Power Requirements 95 130 VAC or 200 250 VAC, 50 60Hz, single phase
Communications Serial port (RS-232 or RS-485), discrete I/O (12 24 VDC), TTL start/abort
Telesis Technologies, Inc. Tel +1-(***)-477-5000
Germany +49 (0) 2191 60908-0 ****@telesistech.com
UK +44 (0) 1297 551313 sales-****@telesistech.com
France +33 (0)1 60.42.88.19 ****@telesistech.com
