New hobart handler 210 dp 3035 spoolgun 10' # 300199
I bought this spool gun brand new a month or so ago. I bought it to weld up an aluminum oil pan but ending up paying someone $20 to TIG weld it. So the gun is brand new still in the package with all of the extra parts thast comes with it. I paid $269 for it. Here is the description of it from Hobart. If you have any questions just let me know. Thanks Brett
Increase the versality of the Hobart Handler 210 with the optional DP-3035-10 Direct plug in spoolgun with 10 foot lead. The industrial grade DP-3035-10 improves feedability with soft aluminum wires but can also be used for mild and stainless steel applications to take advantage of the 10 foot lead when extended reach is required. To install just remove the standard MIG gun and replace it with the DP-3035-10 spoolgun, flip the switch on the center panel from MIG GUN to Spoolgun and it's ready to go. No external control box is required.
Great for Aluminum MIG Welding with the Handler 210 to eliminate feeding problems associated with soft aluminum wire. Available in an economical 10 ft version or in a 20 ft version that provides extended reach. Both are also useable with mild or stainless steel welding wires.
The Hobart DP-3035 Direct Plug-in Spool Gun is quick and easy to install on the Handler 210.
Usable on 16 gauge (1.6 mm) up to 1/4 in (6.3 mm) aluminum with the Handler 210.
* Enclosed wire spool compartment with internal spool hub tension adjustment for 4 in (102 mm) rolls of wire
* Includes contact tips and feed rolls for .030-.035 in (0.8-0.9 mm) aluminum, steel and stainless wires.
MIG (GMAW) Welding with aluminum and other wires
* Easily accessible drive rolls
* Screw-style drive roll tension adjustment
* Spring-loaded tension-release arm for easy wire loading
* Internal adjustment for spool hub tension
* Clear spool cover: keeps wire clean, allows easy visibility of wire supply.
Contact Tips Contact Tips (5 per package)
for .023/.025 in (0.6 mm) wire
# 199731:for .023/.025 in (0.6 mm) wire
# 186413: for .030/.035 in (0.8/0.9 mm) wire
# 199732 :for .023/.025 in (0.6 mm) wire
# 186414 :for .030/.035 in (0.8/0.9 mm) wire

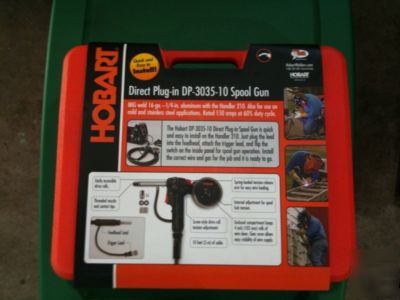

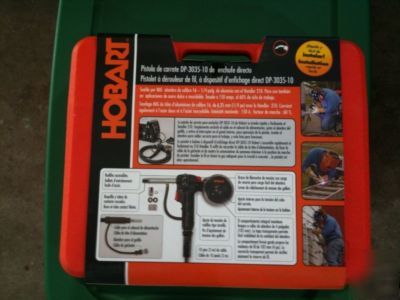

Spool Gun DP-3035 - 10 ft cable is supplied in a rugged plastic carrying case.
Electrode Wire Diameter Capacity
.023-.035 in (0.6-0.9 mm) aluminum, steel, and stainless steel
Net Weight with Cable Assembly
