New usb barcode scanner handheld ccd bar code reader -

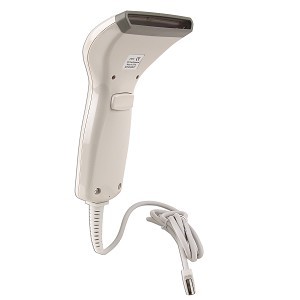

Hand Held Contact USB CCD Barcode Scanner
Hand Held Contact USB CCD Barcode Scanner BCSCANNER-USB
Get superior optical performance with a minimum resolution and a maximum reading distance with this contact CCD barcode scanner. It features a rugged and reliable design and a plug and play USB interface. It's easy to setup and use. Pick up one today!
* Contact CCD Barcode Scanner - USB Interface
* Optical System: 2160 Pixel CCD
* Scan Speed: 100 scans per second
* Light Source: Visible LED (wave length 660nm)
* Resolution: 0.1 mm (4 mil)
* Scanning Angle: 30 (forward) / 37 (reverse)
* Scanning Width: Up to 120mm
* Scanning Distance: 0~50mm (EAN*1, PCS=90%)
* WPC (EAN-13, EAN-8, UPC-A, UPC-E) Code 128
* USB plug and play interface
* Multi-Interface emulation: Keyboard Emulation, C-MOS Serial and Wand Emulation all in one unit
* Type of keyboard Emulation: IBM PC/XT/AT, IBM PS/2 Model 30/40/50/55/80, IBM5550, 3196, 3472
* Temperature-Operating: +32 F to +105 F (0 C to +50 C)
* Temperature-Storage: -15 F to 140 F (-26 C to +60 C)
* Humidity-Operating: up to 80% RH
* Humidity-Storage: up to 90% RH
* Ambient Light Rejection: 1500 Lux maximum (fluorescence);800 Lux maximum (sunlight)
* Shock Resistance: Approved by 1.2 meter drop test on concrete
* Length 170mm x Width 93mm x Height 58mm
* Weight: 120g , excluding Cable and Connector
* Type of Cable: 2M straight cable
* MAC: OS 8.1 or higher (iMac: Rev A. or higher)
