#PLM20HO sundstrand cnc "partsmaker" 4-axis #21067

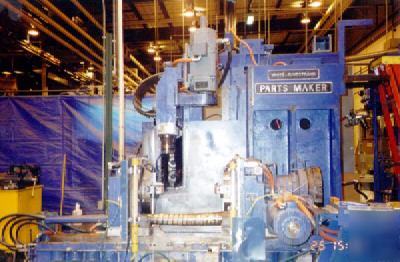

#PLM20HO SUNDSTRAND CNC "PARTSMAKER" 4-AXIS
MILL, DRILL, BORING, REAMING, CONTOURING & ROUTING
OF EXTRUDED SHAPES, BAR STOCK OR TUBING MACHINE
New 1979, Serial No PML005, Model PML20HO,
#LM Microswinc CNC Controls w/LSI 11/23 DEC Processor
(2) 5 HP Spindle Drive Motors w/(4) Fixed Spindles
(2) High Speed Spindles, (1) Horizontal & (1) Vertical
(2) Low Speed Spindles, (1) Horizontal & (1) Vertical
Servo Driven Contouring Work Head Consisting Of A
Stock Workhead & Part Workhead Both With Clamp
(3) High Response DC Electric Servo Motors
Rectangular Hardened & Ground Steel Bed Ways
X-Axis Longitudinal Travel 16"
A-Axis Travel, Rotary UNLIMITED
High Speed Spindles Speeds, Range 7500 TO 15000 RPM
Low Speed Spindles Speeds, Range 5000 TO 10000 RPM
PRICE: REDUCED FROM $350,000.00
