Prince flow control valve - rd-150-16- 0-16 gpm 1/2"

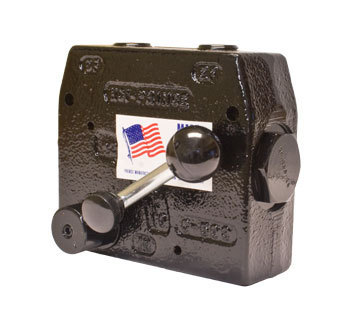

Flow Control Valve - RD-150-16
0-16 GPM 1/2" Pressure Compensated Flow Control Valve - Top-Ports
E-mail a friend about this item.
PRINCE Flow Control RD100 Series
The PRINCE valve models RD-100 are pressure compensated adjustable flow control valves. By rotating the handle, the flow out the CF, or controlled flow port, can be varied from approximately 0 to the maximum controlled flow. Any remaining flow is bypassed to the EF or excess flow port. This flow can be used to power another circuit or can be returned to tank. Once the controlled flow is set it will remain nearly constant with variations in pressure on either the controlled or excess flow ports.
Please note: If during operation the controlled flow port is blocked the valve will compensate in such a way as to shut off flow to the excess port. These valves can also be used as a restrictive flow control by plugging the excess flow port. It should be noted that whenever these or any valve is used to bypass or restrict, flow heat will be generated. Steps may be required to keep oil temperature from becoming too high.
* Pressure-Compensated Adjustable Flow
* 3-Year Warranty (see catalog for full details)
