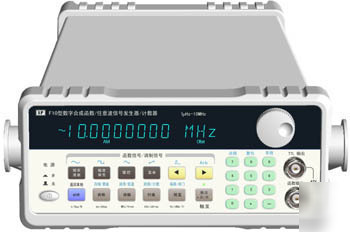

SPF10 dds function/arbitrary generator/counter 100MHZ
SPF10 Function/Arbitrary Generator/Counter 10M HzIntroduction:
SPF10 DDS Function/Arbitrary Generator/Counter, which uses Direct Digital Synthesis(DDS) Technology to provide high resolution, high accuracy, high stability.
High resolution, high accuracy, high stability.
It can be used for digital sweep instrument with an oscilloscope.
1mVp-p-10Vp-p (50 ohm)(f > 40MHz)
1mVp-p-2Vp-p (50 ohm) (f > 40MHz)
2mVp-p-20Vp-p (1M ohm ) (f <= 40MHz)
2mVp-p-4Vp-p (1M ohm ) (f > 40MHz)
Sine, Square, Pulse, Triangle, Ramp, TTL pulse, Sweep,FM,AM, Burst, FSK,PSK and others. (more than twenty wave forms stored in nonvolatile memory)
Harmonic Distortion of Sine Wave
12-character highly visible VFD
