Tektronix TDS7104 digital oscilloscope 1GHZ 10GS/s OP1M

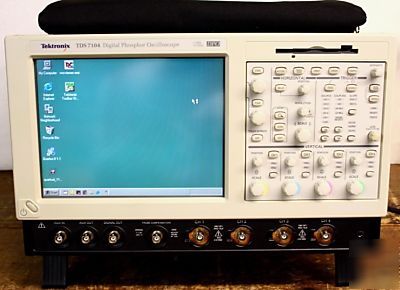

This is a Tektronix TDS 7104 Digital Phosphor Oscilloscope 1GHz 10GS/s with Option 1M - please check actual pictures below: unit appears to be in good working condition, passes self startup tests, also diagnostics as shown in one of the picture, signals given come out in the nice touchscreen color lcd monitor as expected. Unit will weigh about 55-60lbs packed, depending upon packaging material used. Will have a power cord, pouch, carrying handle, stand-up pins. Recent calibration expired showing as of end of May 2008. Contact me with any questions you may have and thanks for your attention!
The Tektronix TDS7104 provides uncompromised performance along with a complete feature set designed to address validation, debug, and compliance challenges of next generation computer, datacom, and communications equipment. This oscilloscope features exceptional acquisition performance operational simplicity and open connectivity to the design environment. Classic analog style controls, a large touch sensitive display and graphical menus provide intuitive control. Open access to the windows operating system enables unprecedented customization.
* 10 GS/s Sample Rate on 1 or 2 Channels
* 2.5 GS/s Sample rate on 3 or 4 Channels
* Jitter Measurements to 1.5 psRMS
* Analysis and Connectivity Functionality
* Control Via Classic Direct Controls, Touch-sensitive, Color Display or Mouse
