Vertex standard vx-2500U uhf mobile radio yaesu vx-2500

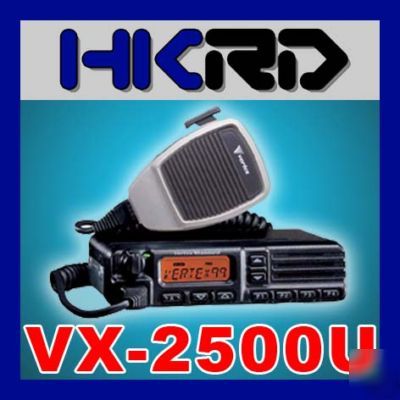

Vertex Standard VX-2500U (CS version)
UHF Mobile Transceiver / Radio
The 128-channel VX-2500 mobile transceivers are ideal for business and industrial applications. With 25 Watts of
power output, an easy-to-read 8-character invertible alpha-numeric display, nine programmable keys, and a host of signaling
formats, the VX-2500 will get your message through under the toughest conditions.
Alpha-numeric Display (14 Segments x 8 Digits)
The 8-digit Alpha-numeric display allows quick channel identification by the user, and is easy to read from a wide range of viewing angles.
For applications where a mobile may be receiving calls from more than one dispatcher on a particular channel, the VX-2500 includes a uilt-in Dual Two-Tone Decoder circuit.
For applications where a mobile may be receiving calls from more than one dispatcher on a particular channel, the VX-2500 includes a built-in Dual Two-Tone Decoder circuit.
The VX-2500 Conventional has a built in DTMF ANI encoder. It also includes a DTMF decoder both for paging and also to show the calling party. Built in 2-Tone decoding allows you to be on call for Fire, Medical Response, or any other service where you find yourself carrying two pagers.
DTMF ANI Encoder / ID Display
Automatic Number Identification (ANI) via an automatic DTMF Encoder is also provided among the VX-2500 s versatile signaling capabilities.
DTMF Paging function is good for dispatch or network operations.
A wide range of set-up options are available during configuration of the VX-2500, to ensure compatibility with the operating requirements of your system s users.
For narrow-band channel applications, the built-in Audio Companding system compresses the voice waveform during transmission, and expands it during reception, allowing full-sounding audio despite the restricted transmission bandwidth.
Encryption (Optional FVP-25 required)
For applications requiring secure communications, the optional FVP-25 Paging/ Encryption Unit provides scrambling and descrambling functions.
When activated, the "Emergency" feature sends out the DTMF ANI, and cycles between transmit and receive, to serve as an emergency beacon to alert the dispatcher as to the need for immediate aid.
The Auto-Range Transponder System, a Vertex Standard exclusive, alerts the operator when another ARTSTM-equipped station (for example, a hand-held unit) moves out of communication range. You can then advise the other user to move to a better location.
Among the most useful protection features of the VX-2500 are the transmitter Time-Out Timer (TOT), Busy Channel Lock-Out (BCLO), and Busy Tone Lock-Out (BTLO), to ensure efficient network performance at all times.
Programmable Front Panel Keys
Custom assignment of important functions to front panel keys is available at the time of programming, to provide the most ergonomically-friendly transceiver available today.
Among the useful set-up options for the VX-2500 is the capability to customize the"Alert" tones generated from the transceiver, for ease of recognition by the user.
The VX-2500 s circuitry is housed within a die-cast aluminum enclosure, which doubles as a heat sink. This extraordinarily durable construction ensures many years of reliable operation, even in high-vibration installations.
MIL-Spec Rated (MIL 810 C/D/E)
The ultra-rugged design of the VX-2500 Series enables it to be fully compliant with the exacting specifications of MIL 810 C, D, and E, pursuant to the test Audio Compander Included procedures documented below.
22 F to +140 F ( 30 C to +60 C)
6.4" x 1.6" 4.4" (160 mm x 40 mm x 110 mm)
Double conversion Super-heterodyne
Measurements per EIA standards unless noted above. Specifications subject to change without notice or obligation.
Accessories of VX-2500 series (Not included)
There are accessories of VX-2500 series. Please contact us if you are interested. We will list them per your request.
