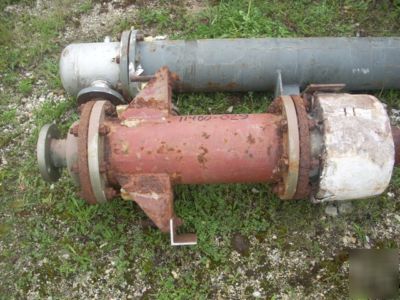

20 square foot hastelloy shell & tube heat exchanger
Used 20 square foot vertical shell & tube heat exchanger. Hastelloy B tubes (51) 3/4" OD X 16 BWG X 24" long. Carbon Steel Shell 8 5/8" Diameter. Hastelloy B Heads. Tube side rated 125/FV @ 350 degrees F. Shell side rated 125 psi @ 350 degrees F. Coolant in/out 1 1/2". Vapor In 3". Vent out 2". Conden. Out 1 1/2". Built by Cousins. 1987. SN 1286-10. NB 5828.
