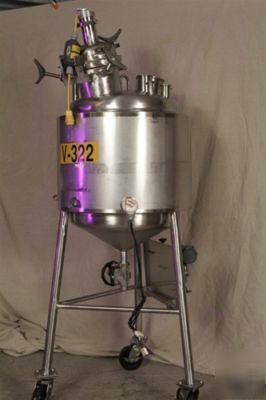

50 gallon jacketed sanitary 316L stainless reactor tank
1993 Apache 50 Gallon Pressurized & Jacketed
Sanitary Stainless Steel Coned Bottom Reactor Tank
Last used in a pharmaceutical plant.
http:// /watch?v=YnmDKsmGw8E
http:// /ProductDetails.asp?ProductCode=TL-V322
20" Straight side height of tank.
28" diameter not including ports for jackets.
Side ports sticks out 5" inches.
Has a domed top and conical bottom.
Tank will accept a mixer with the right tri-clamp fitting.
(2) 1.5" ports with 1.5" tri-clamp fittings.
(2) 1" ports with 1.5" tri-clamp fittings.
NOTE: One of the 1" ports is bent and the tri-clamp ferrule is bent as well.
The bent ferrule will not be able to provide a tight seal so the tank won't hold pressure unless this is fixed and it can be easily fixed.
(1) 2" port with 2" tri-clamp fittings.
(1) 3" port with 3" tri-clamp fitting.
(1) 3/4" port with 3/4" tri-clamp fitting.
(1) 6" port with 6" tri-clamp fitting.
(1) 10" Hatch door opening up top includes a sight glass and a 110v push button light to shine down and illuminate inside the tank.
There is a removable 1.5" TC stainless steel blow off tube/vent (see photo).
On the top, there is a picking loop in case the unit needs to be lifted with a crane.
(1) 1/2" port with 3/4" TC fitting.
(2) In and out ports for the jacket.
(1) temperature gauge port. There is a temperature probe attached with custom plugs.
(1) 1.5" male thread port on side with plug.
Jacket have not been tested but appear to be in working order.
Vessel MAX. Allowable Working Pressure.
Vessel MIN. Design Metal Temperature
Jacket MAX. Allowable Working Pressure
Jacket MIN. Design Metal Temperature
(1) 1.5" Tri-clamp gate valve attached to 1.5" drain port with 1.5" tri-clamp fitting at the bottom of the cone.
Stainless legs with 3 Caster wheels with brakes.
Manufacturered by Apache Stainless Equip. Corp. (Wisconsin, USA)
If you would like more pictures, please email me.
