51" tbl 7.5HP spdl sharp uh-3 universal/horz mill horiz
51" Tbl 7.5HP Spdl Sharp UH-3 Universal/Horz Mill HORIZ
51" Table 7.5HP Spindle Sharp UH-3 Universal/Horz Mill HORIZONTAL MILL, Swivel Table - 90 Degrees
NEW SHARP UNIVERSAL HORIZONTAL MILL
MODEL: UH-3, Universal Swivel Table

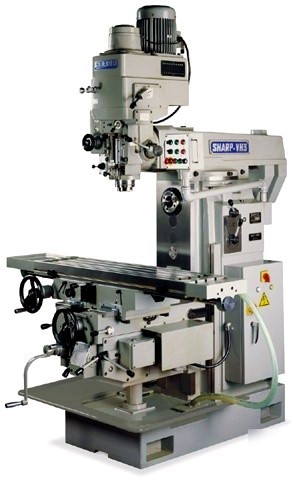

Note - photo shows similar model with Vertical Head
Throat distance (min-max): 12.8"-30.7"
Wiring voltage: 220V or 440V, 3 Ph, 60 Hz
Spindle Center Line to Table (min-max): 0 - 18-1/2"
Floor area (w x d): 117" x 69"'
Net weight (lbs; approximately): 5,170
3 HP Table Feed & Rapid Traverse Motor (for all 3 Axes)
X & Y Table Feeds (1/2 - 24-7/8 IPM) w/ Rapid Traverse (116.5 IPM)
Vertical Feed to Knee (1/4 - 12-7/16 IPM) w/Rapid Traverse (60 IPM)
1.25" Diameter Arbor and (2) Arbor Supports
Massive Hardened and Ground Box Ways Throughout
Lever Control forward & reverse for Tapping & Boring
Coolant System and Pressurized Auto Lube System
