Johnson level & tool elect self-leveling rotary laser

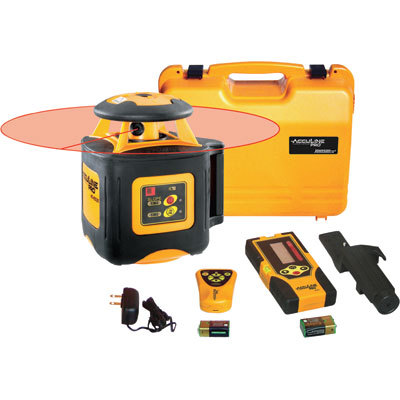

Johnson Level & Tool Elect Self-Leveling Rotary Laser
The Self-Leveling Rotary Laser Level features automatic-leveling, plus slope function to allow user to perform slope at different inclination in both x and y axis. Included detector and remote control for convenient operation. Application: Construction, concrete work, deck building, landscaping, Range (ft.): Exterior: Up to 2,000ft. dia. w/ detector; Interior: Up to 200ft. dia., Rotation Speed: 700 RPM, Accuracy: 1/16in. @ 100 feet, Battery Type: Rechargeable battery pack, 6V adapter or C batteries, Battery Included: Rechargeable battery pack & 6V adapter, Laser Output: 5mW, Tripod Mount Dimensions (in.): 5/8in. - 11 center screw thread Large 5 electronic auto-leveling range Height of Instrument alarm function ensures product accuracy Dust and rain resistant housing Remote power off function Leveling method: Automatic (Electronic) Laser wavelength: 635nm 10nm (Red) Laser classification: Class IIIa Accuracy: 1/16in./100ft. ( 1.5mm/30m) Interior range: Up to 200ft. diameter (60m) depending upon light conditions Exterior range: Up to 2000ft. diameter (600m) with detector Remote range: Up to 200ft. diameter (60m) Slope: 8 Auto-leveling range: 5 (visual and audio alarm if beyond range) Power supply: 4 C alkaline batteries (not included), rechargeable Ni-MH battery pack, or 6V adapter (included) Battery life: Approximately 28 hours with rechargeable battery pack, 33 hours with alkaline batteries Dimensions 7.4in. x 5.9in. x 8.15in. (188 x 150 x 207mm) Working temperature: 14 F to 113 F (-10 C to +45 C
