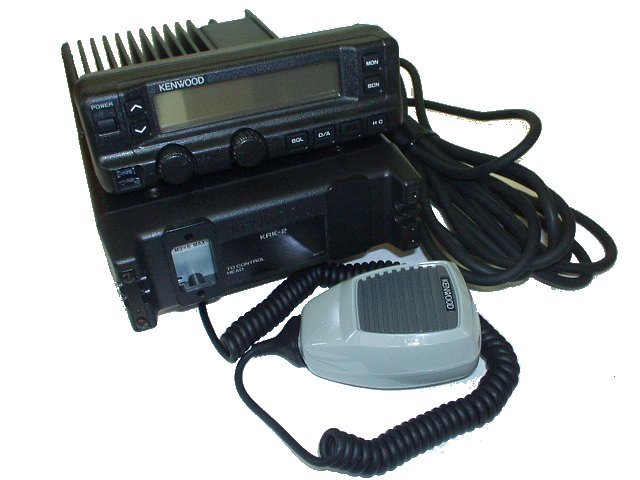

Kenwood tk-630H vhf mobile radio 110W 160CH ems ham 10M
Kenwood TK-630H VHF Hi-Spec Mobile Radio
160 Channels, 110 Watts, rare VHF 27-35 MHz Bandsplit
* MODEL: TK-630H (27-35MHz, this is the highly sought-after 10M capable band-split)
* VHF BAND: 27 - 35 MHz (ideal for 10M, business/public safety use).
* CHANNEL SPACING: PLL channel step 5 KHz, Regular (Wideband) and Narrowband channels may be freely mixed.
* RF OUTPUT POWER: 110 Watts (adjustable to 45-110W)
* CHANNELS: 160 (KCH-4 head with programmable buttons & alphanumeric front panel)
* User-selectable CTCSS codes for all channels - great for repeater access.
* This versatile mobile tranceiver was designed specifically for public service users with features ideal for fire, police, EMS and disaster management organizations. This rugged MIL-STD unit is in a class of its own compared to regular 'commercial grade' tranceivers. It's designed for uncompromising 24/7 reliability in tough work environments.
* This is the remote mount (trunk mount) version with alphanumeric control head with built-in speaker for in- and under-dash mounting.
- 160 Regular or Narrowband channels (can be specified on a per-channel basis)
- Wideband RF section: No tuning required over entire 27-35 MHz range.
- Many software and hardware options including MDT, AVL and QT/DQT (CTCSS).
- Can be used as single head remote or configured as dual head and/or - dual band remote mount with optional remote head kits.
- 2 character alphanumeric LCD.
- Dynamic grouping, programmable controls and emergency features.
- Meets MIL-SPEC 810 C, D and E for shock, vibration and dust as well as "driven rain" spec.
- Easy, inuitive operation.
- User-programmable functions include voice scrambler, AUX, and user selectable codes.
- Programmable scan includes non-priority scan, single priority scan, and dual priority scan.
- Public address programmable.
- Busy channel lock-out function.
- Transmit monitor function.
- PC programmable (using optional cable & software).
- Cloning from existing programmed radios.
* This professionally refurbished mobile radio has been bench tested to factory specs.
* Functionally as new. May have some scuffing or normal wear on the top/bottom covers and/or head, but nothing visible after mounting or effecting operation. Complete except for mounting brackets, external speaker.
TK-690H-3 40-50MHz 110W VHF Transceiver
KCH-4 Alphanumeric Control head
KCH-5 160 channel upgrade (installed)
*BRAND NEW* KMC-27C Heavy Duty Mil-Spec Dynamic Noise-Canceling Microphone
KCT-12B 17' Remote Head Cable
DC power cable, speaker cable
* This is the last one we have available *
