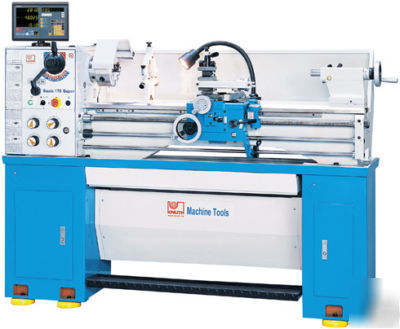

Knuth basic 170 superlathe 220VOLT 3PH 60HZ
Precision bench lathe with wide working area:
hardened and ground headstock gears
adjustable headstock bearing
oil-bath lubricated main drive and feed gear
shift gear system to change feed direction
interlocking feature prevents simultaneous advance of
cast-iron bed, double v-guide, hardened and ground
double-walled apron box with oil-bath lubrication
all guideways are adjustable
(number/range) rpm (8) 70 - 2000
spindle mount / taper Camlock D1-4 / MT5
longitudinal feeds /rpm 0.001 - 0.061
transverse feeds /rpm 0.001 - 0.100
tailstock cross adjustment 0.4
dimensions (LxWxH) 72 x 27 x 52
Part No. inc. position indicator 300 815
