Littleford dvt 2000 mixer - s/s - 528.40 gallon #3324

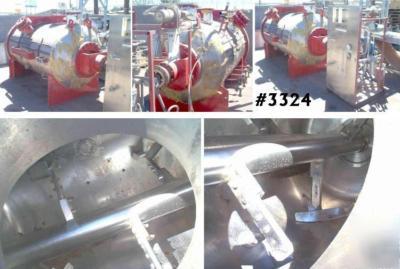

LITTLEFORD MODEL DVT 2000 MIXER - S/S - 528.40 GALLON (2000 LITER)
1 - used Littleford Model DVT-2000 Plow Mixer. Horizontal chamber with dished ends. Stainless steel contact parts. 42 cu. ft. working capacity (71 cu. ft. total). 20 HP Siemens motor 3/60/230/460V 45.4/22.7 amps (machine good for up to 50 HP) to Falk reducer model 1100FC3A. Ratio 101.5 input RPM 1552/output RPM 15 service rating 20 HP service factor 1.65. Bolt on strip heaters attached to outer shell. NB code stamped #1296. Internal rated 175 psig at 378 deg. F. Approx. 23 1/4 in. top flanged opening and approx. 8 in. center bottom outlet. Various inlets and sight glasses on the shell. Bolted on plows. Non-code welding was performed on this mixer. Re-certification of welding can be done by a code facility. Machine was built in 1984. Prior use: drying cotton seed on an experimental basis. F.O.B. - Cleveland OH
