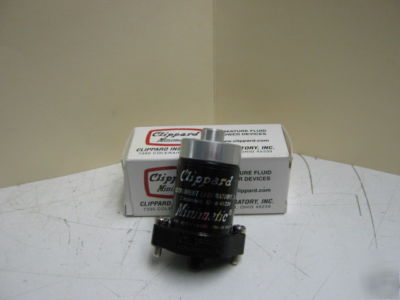

Clippard minimatic 4-way delay in model r-453
CLIPPARD MINIMATIC 4-WAY DELAY IN MODEL R-453
Description 2:4-Way Delay InUses:R-453 is a 4-way, spring return, fully ported 5 port valve with an adjustable flow control valve interconnected to the pilot. A pilot signal input in port 4 will be delayed in before actuating he valve. When the pilot signal is exhausted the spring shut Max Psi:150 psi Temperature Range:30 to 230 FWeight:0.5500Flow:10 SCFM @ 100 psig Notes: minimum pilot pressure is 40 psi
