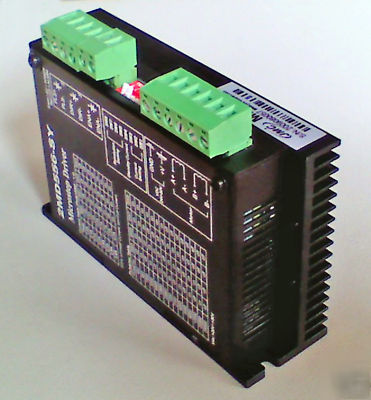

Cnc 5.6 a bipolar 2PH hybrid micro stepper motor drive
NEW 2 phase Mirco stepper motor Driver
High performance 5.6A 50V Stepping motor driver
Bipolar ( A+, A-, B+, B-) stepping driver,
Capable to drive up to 50V @ 5.6A Per phase
INDUSTRIAL GRADE for LONG TIME OPERATION
Mirco step form 400 to 128000 step per Revelution
current output up to 5.6A peak
Optically isolated input signals,
Automatic idle-current reduction
State current control for less motor heating
Suitable for 4,6,8 lead motors
DIP switch current setting with 8 different value
1.4, 2.1, 2.7, 3.2, 3.8, 4.3, 4.9, 5.6A
IDEA for NEMA 23 & NEMA 34 stepper Motor
1: PLUSE (step pulse/Rising Edge)
The first is US$19.9 the another is US$13 per each
Will send by register mail. Normally takes 7-10 days
Drive NEMA34 800oz.in motor turning at 3000rpm
