Nisshinbo htp-1000 37-station cnc turret punch TW202

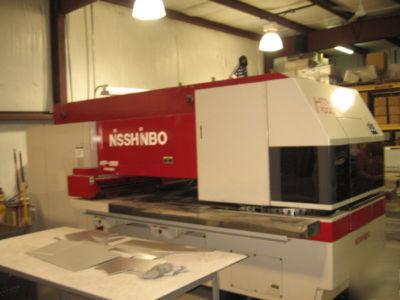

24 TON NISSHINBO HTP-1000 37-STATION CNC TURRET PUNCH
New 1997, Serial No HTP-97019, Model HTP-1000
VIDEO: http:// /watch?v=4bM5ysPwT4M
Pal-510T 5-Axis Simultaneous CNC Control w/CRT
37-Station "Thick" Turret (Bi-Directional)
39" X 99" Sheet Size w/Automatic Repositioning
Tonnage Capacity....................... 24 TON
Hole Diameter, Maximum................. 3.5" (14 Gauge)
Material Thickness, Maximum............ .250" (1.25" Dia.)
Workpiece Size, Without Repositioning.. 39" X 49.6"
Workpiece Size, With Repositioning..... 39" X 99"
Feed Clearance......................... 0.787"
Maximum Work Weight.................... 265 LBS.
Accuracy, X/Y Location................. +/- 0.004"
Hits Per Minute @ 1" Moves............. 330 HPM
Nibbling Hits Per Minute............... 800 HPM
Table Feed Speeds, Max................. 2756 IPM
Auto-Index Speed....................... 30 RPM (Bi-Directional)
Overall Dimensions..................... 18'10" x 7'9"
Weight, Approximately.................. 39,680 LBS
CONDITION: Appears To Be In Excellent Condition.
PRICE: F.O.B. OUR WAREHOUSE........... $39,500.00
