Nsk nakanishi rotus air motor im-300
Nsk Nakanishi Rotus Air Motor IM-300
ULTRA-PRECISION AIR MOTOR IM-300 ( with Chip Air Mechanism )
High torque air motor assembled with special vane mechanism.
Hose for Piping (K-207) 6 ft : 1 pc.
Speed : Max. 30,000 min-1(rpm) (56PSI)
Proper Air Pressure : 42~63PSI
Max. Torque : 6.6 cN m (56PSI)
Air motor IM-300 with Chip Air mechanism blows away the cutting dust with clean air coming through the top end of the attachment. The handheld cutting work remains cool by the chip air allowing comfort through out the working process.
(This is only with the attachment IH-300)
Weight : 4.59 oz. excluding hosehose
Motor for ROTUS (Pneumatically Driven)
Air motor designed for high-efficiency
To achieve high torque, ROTUS air motor is assembled with micron precision between the vanes and the internal surface of cylinder using NAKANISHI's proprietary techniques. This high performance air motor with minimal power loss from load fluctuation has excellent performance in its grinding stability. Moreover, the motor with minimal air consumption runs quietly and the energy-saving mechanism makes it possible to operate with a 1 hp (0.75KW) air compressor.
Air Cooling System generates no heat for a continuous operation
The motor prevents heat generation and expansion of metal by air cooling system and provides stable rotation speed.
Light-weight and compact design
The motor with attachment IR-310 is only 8.74 oz. Its light-weight and well balanced design provides excellent grinding performance.

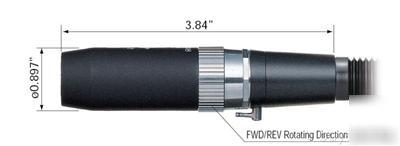

Assembled with Speed Control and Forward/Reverse Control Ring
Forward/Reverse Rotating Direction Control Ring located at the end of the motor can control the motor speed as well.
Fine adjustment of variable speed can be controlled by Foot Control.
Excellent quietness with Silencer
By attaching the silencer to the end of the exhaust air tubing, the motor is operated extremely quiet.
Ultra-Precision High-Torque Air Grinder
Special Rotary Vane Air Motor is Incorporated
The air motor is utilizes a special vane design which keeps constant speed even under load providing stable grinding and polishing operation.
To prevent twisting of the hose, 360 Twist- Free Joint connects the motor and the hose.
Assembled with ON/OFF, speed control and FWD./REV. control ring switch.
