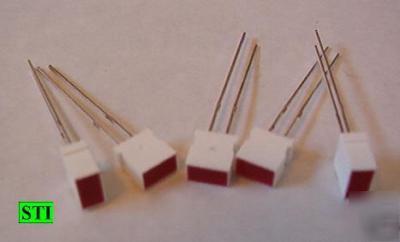

Rectangular red leds - fairchild MV57124A qty 5

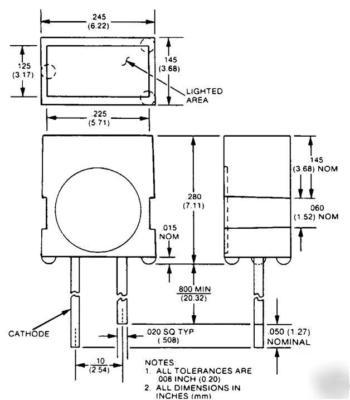

Light Area: 0.225 x 0.125 inches
Cathode Lead Length: 0.850 inches
Anode Lead Length: 0.800 inches
Overall Dimensions (Body): 0.245 x 0.145 x 0.480 inches
These are great for the small electronic projects or prototypes custom rectangular LEDs are needed.
Absolute Maximum Ratings @ +25 C
Continuous Forward Current: 30 mA
Peak Forwared Current (1 Microsecond): 90 mA
Operating Temperature Range: -55 to +100 Deg C
Check out our other Electronic Component values!
