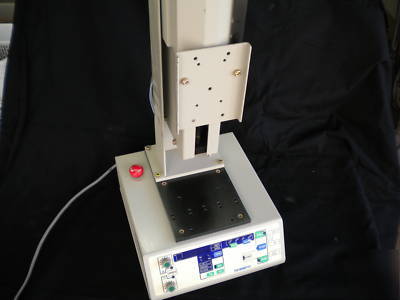

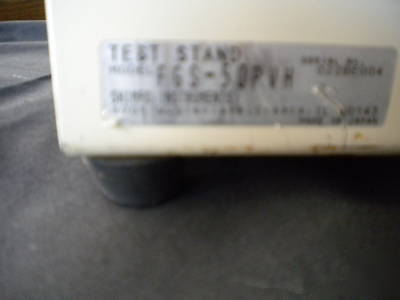

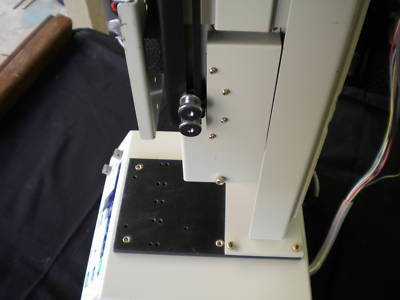

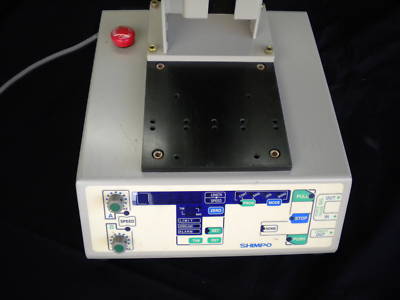

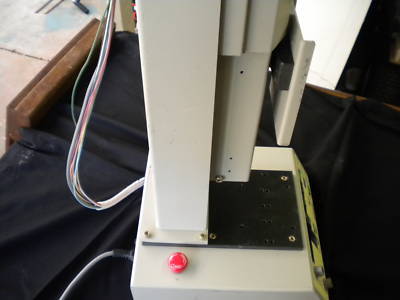

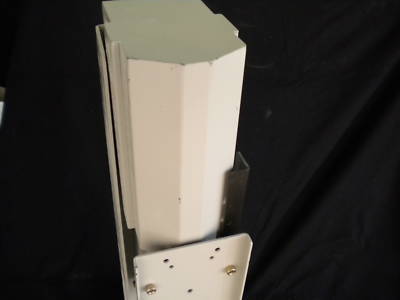

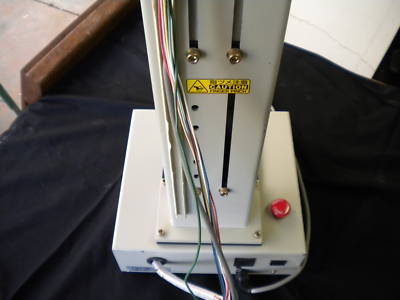

Shimpo instruments fgs-50PVH motorized test stand

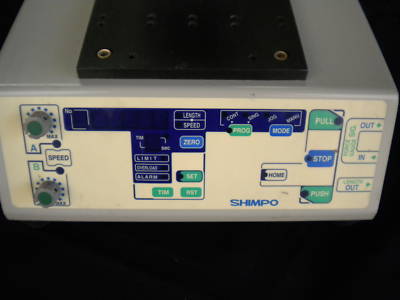

Features: Vertical Standard Speed High and low force set points user selectable through RS232C interface or directly through DFS gauge User programmable set points: speed, distance, stop time Gauge overload protection All steel construction guarantees durability and stability for production, laboratory and quality control applications Dual speed controls are optimally positioned to adjust test and return travel rates of the drive assembly Drive assembly accepts an optional universal mounting plate, enabling the interfacing of a large selection of force gauge models 4 1/2 digit LED display indicates displacement or rate of the drive assembly Analog output (labeled Length Out ) is convenient for data acquisition requirements Shimpo's advanced motorized test stands allow the user to obtain the most accurate, repeatable results available in the market today. Their all steel construction makes them remarkably rugged, while programming and cycling capabilities enable them to be highly intelligent. All stands have the ability to interface with our top quality force gauges, providing complete force measurement systems for the most precise testing applications. Because speed, distance, and time are controlled by the user in either a vertical or horizontal model, motorized stands can be configured for any application. Technical Specifications Capacity110 lb (50 kg) Stroke5.5" (140 mm) Travel speedFGS-50PVH: Adjustable: 1.57-15.74"/min (40-400 mm/min) FGS-50PVH: Adjustable: 0.39-3.93"/min (10-100 mm/min) DisplayFour digit LED, 0.41" high (10.5 mm). Reads in inches (0.01 resolution) or millimeters (0.1 resolution) Power120 VAC, 60 Hz Weight42 lb (19
