New 855 lead-free bench-top solder/rework station
855 Lead-Free Bench-Top Solder/Rework Station
Removes or Re-Solders Components, 10-Profile Storage
Work station offers several process control and precision characteristics that parallel those of sophisticated reflow ovens selling at many times its price. Push-button profile settings for temperature, air flow volume and duration to replicate recommendations of solder paste manufacturers. When activated, the unit proceeds automatically through its three preheating zones and two reflow zones before auto shutoff when the cycle is completed. Up to 10 profiles can be stored in the system memory.
The 855 s bottom temperature range of up to 350 C meets the high thermal demands of lead-free processing. Accuracy is assured by an included external thermocouple on the PCB while an adjustable ceramic underheater gently acclimates the PCB to rising temperatures, preventing board warpage. The production cycle begins as a heating nozzle is attached to the head, and then z-lowered onto the component. When reflow is complete, the head is automatically lifted, as board is cleaned of solder residue. To solder, component is manually positioned on the solder pads. Hot air wand with nozzle affixed is then lowered by push button as soldering cycle is activated. Three nozzles fitting commonly used SM components are included, while 15 others are available at reasonable cost.

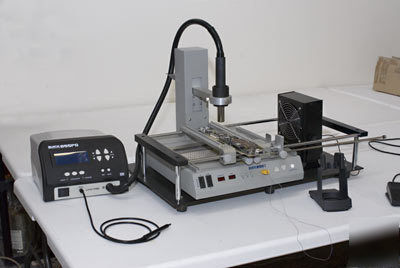

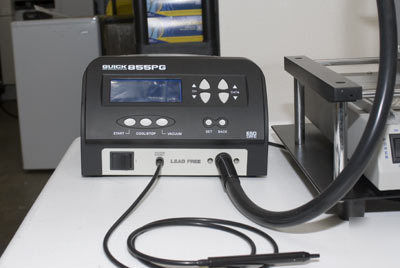

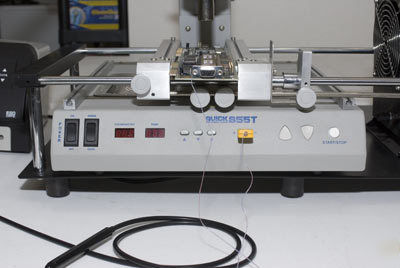

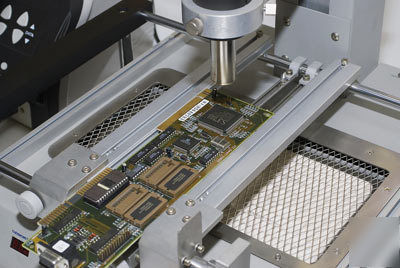

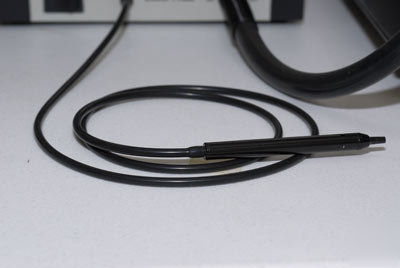

* 6-Pc. unit includes Process Controller, PCB Retention Fixture, Hot Air Wand, Vacuum Suction Pen, Adjustable Ceramic Underheater and Cool-Down Fan.
* 3 heating nozzles for most commonly used SM chips are included. 15 additional nozzles available at modest cost.
* External Thermocouple ensures accurate temperature readings while preventing overheating.
* Bottom temperature adjustable to 350 C for thermal conditions required in lead-free soldering.
* Easy-to-set profile of temperature, air flow volume and time, with automatic sequencing from preheat to reflow, and shut-off when cycle is completed. Foot pedal control also included.
* Memory storage of up to 10 profiles.
3.2 - 52.8 gal/min (12 - 200 liters/min)
10"L x 9"W x 6"H (250 x 230 x 150mm)
