New amana 24 volt high/low pressure control kit PCK01A
Amana 24 Volt High/Low Pressure Control Kit PCK01A New
RCE24C2-RCE60C2 Prestige Units
RCB18C2-RCB60C2 Prestige Units
This kit is for use with Amana remote cooling-only units that do not have high and low pressure cutouts or short cycle protector factory installed.
This kit includes tees for mounting of the pressure cutouts on the outdoor unit's service valves. After the tees are installed, a gauge manifold can be attached to them when servicing is necessary.
Both the high and low pressure cutouts reset automatically.
All wiring to the pressure cutouts and the short cycle protector is 24 volt.

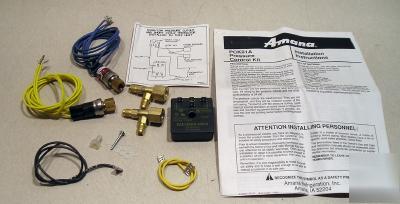

2 - Refrigerant Tees, with two valve cores per tee
1 - Low Pressure Cutout, Auto Reset
1 - High Pressure Cutout, Auto Reset
