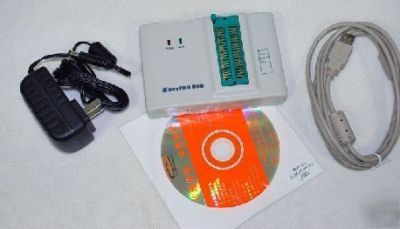

New easypro 90B universal usb programmer 6000+ eeprom
New EasyPro 90B universal USB programmer 6000+ EEPROM
Power: By external power supply (< =40W)
Dimensions: 120mm 82mm 27 mm (L W H)
Diagnostics: RAM, ROM, CPU, pin drivers, power supply, communications, cable, calibration verification timing.
Algorithms: uses manufacturer approved algorithms
File Type: It can handle file in binary/machine code, Intel Hex, Techtronics, Signetics, Motorola, ASCII, MS-DOS fn. COM & EXE, DRAFT etc.
Device Supported: including, but not limited to low voltage, PROM, EPROM, EEPROM, Flash EEPROM, Microcontrollers, GAL. SRAM, TTL/CMOS device test.
S/W update: virtually supports you, and free lifetime software updates are available!
Requirements: Microsoft Windows 98 or above
Icc Range: 0~800mA continuously programmable
Clocks: continuously variable 4M~48M
Protection: over current shutdown, power failure shutdown
Independence: pin drivers and waveform generators are fully independent and concurrent
3) New Easypro 90B programmer;
Supporting all ATMEL, ARV, MYSON chips, good for BIOS
Supporting serial and parallel MCU AVR EPROM EEPROM FLASH PLD CPLD EPLD standard logic devices
Supporting microchip MCS-51 PIC series AVR
Supporting MCU: PHILIPS Atmel Winbond HY MicroChip Holtek SST ICSI SYNCOMS DALLAS
Supporting 27 28 series EPROM EEPROM
Supporting 29 39 49 series FLASH
Supporting I2C interfaced 24 series SPI interfaced 25 93C series EEPROM
Supporting SRAM chipstestiing for example: 2K 512K SRAM
Supporting TTL/CMOS circuit test
Supporting series45 series standard logic device' TTL/CMOS circuit test
