Paragon wall switch timer, model ET1100 / 3-way

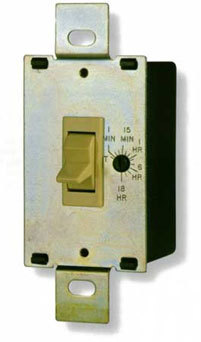

Paragon Wall Switch Timer, Model ET1100 / 3-Way
Easy to Program Off Delay Timer
Hidden program dial is tamper-resistant
For single or multiple gang boxes, resistive, tungsten, and ballast loads.
Min. Time Setting (Minutes): 1 Min.
Paragon Wall Switch Timer, Model ET1100
dekkasupply.com/stores/paragon/et1100.html - Price: $78.38
/Grainger/items/4WZ52 - Price: $63.20
/docs/ROBERTSHAW.xls PTC-4151 - Price: $101.96
EMAIL US IF INTERESTED IN THE REMAINING LOT...WILL NEGOTIATE.
Energy control meets economy with Paragon s ET Series of Electronic Light Switch Timers. Ideal when lights are needlessly left on or forgotten, the ET Series offers a complete solution superior to occupancy sensors. Simply set the dial for the amount of time the lights are to be left ON, from 1 minute to 18 hours, and the lights will go OFF automatically when that time expires.
The ET Series is a family of 10 different models, designed to meet incandescent, fluorescent and diverse voltages.
Fast, easy, low-cost installation saves contractors time and money.
Simple setting requires no technical expertise.
Guaranteed lighting shut-off ensures lower utility bills.
Hidden dial makes timer tamper-proof.
Design allows timer to fit in single, double or multi-gang decorator wall plates.
T setting allows 15-second test mode.
UL and CSA listed means quality and durability are built into every time control.
Operating Temperature 0 F to 104 F
Operating Humidity 90% RH-non-condensing
The ET should be mounted in a single gang or multiple gang wall box, in an environment that is free of excessive contaminants such as oil, grease, dirt, etc.
Color of Toggle Switch Ivory (standard)
Agency Recognition Timer is UL listed and CSA certified.
Installer shall furnish and install Paragon ET Series Electronic Light Switch Timer. Timer shall be solid state with adjustable time range from 1 minute to 18 hours. The control shall be tamper-proof with out-of-sight programming dial and shall operate from 24 Vac to 277 Vac. The control shall be rated to switch up to 1100 watts (ET1100, ET1100/3WAY).
The control shall be capable of operating between 24 Vac and 277 Vac.
The control (ET1100/3WAY) shall be capable of controlling 3-way switching applications.
ET1100 SPST 0.25-4.00 A Resistive 24V 6-96 Watts
ET1100/3WAY SPDT Toggle 0.25-4.00 A Ballast 120V 30-480 Watts
Voltage Rating 24 To 277 Volts, Power Rating 1100 Watts, Minimum Current Rating 0.25 Amp
