Spectra laser level HV101 interior/exterior kit 18049
Spectra Laser HV201
Recharge Kit, Wall Mount, Glasses & Target
Spectra HV101 Laser Interior/Exterior Level Kit HR320 Receiver & Inch Rod
General purpose Construction Laser for Interior and Exterior Applications
A Leveling Crew in a Case - Package Includes All Exterior and Interior Accessories at a Compact Price

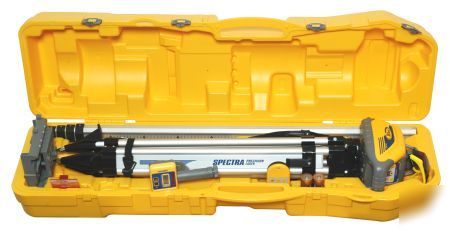

The system contains the Spectra Precision HV101 laser, HR320 receiver, tripod, and choice of 15 ft (5 m) grade rod. All required interior construction accessories are also included remote control, wall mount, ceiling target, and glasses. Everything fits into a hard-shelled, portable, system carrying case. It s easy to transport, easy to carry, easy to store, and especially easy to use.
* Jobsite Tough Carrying Case
* Beam is easily visible even in brightly lit conditions
* Durable construction can withstand tough jobsite conditions
* Split beam enables plumb point transfer and 90-degree layout
* 3-year instant over the counter exchange warranty eliminates downtime
* Laser Source = <5 mW @ 635nm, Class 3A
* Laser Accuracy = 1/8 in at 100 ft ( 3 mm at 30 m) ( 20 arc seconds)
* Operating Range = 100ft minimum visual, 1,000ft diameter w/receiver
* Self-Leveling Range = 5 degrees
* Compensation Method = Electronic self-leveling
* Power Source = 2 x D alkaline batteries
* Battery Life = 50 hours alkaline (45/25 hrs user provided Ni-MH/Ni-CD)
* Battery Status LED = Flashing red LED
* Rotation Speed Four preset speeds 0,50,200,600 RPM
* Scan Angles = Five preset angles 3 , 8 , 45 , 90 , 180
* Out of level Warning = Rotation stops, laser shuts off, red out of level LED flashes
* Operating Temperature. = 23 F to 113 F (-5 C to 45 C)
* Storage Temperature = -4 F to 158 F (-20 C to 70 C)
* Water Resistant = Yes, and IP54 sealing
* Size = 8.5L 6.7W 6.0H in (21.6L 17.1W 15.2H cm)
* Interior and exterior commercial and residential construction
* Installation of ceilings and raised floors
* Interior finishing work
